EZ17e

EZ17E grippermounting (OPTION) Diagram

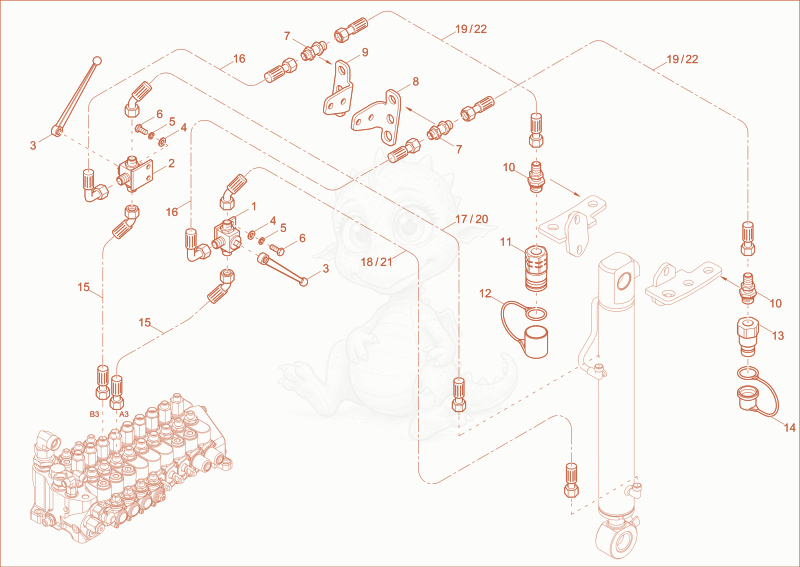

Exploded parts diagram of the grippermounting (OPTION) of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000257097
    $94.17
    BK3 10L 10 1123 1 T90�� - 1000257097×1
  • 21000256085
    $94.17
    BK3 10L 10 1123 1 T90�� - 1000256085×1
  • 31000069361Not stocked
    handle×2
  • 41000015431Not stocked
    washer×4
  • 51000015437Not stocked
    lock washer×4
  • 61000013008Not stocked
    hex screw×4
  • 71000085076
    $4.95
    SV10-L - 1000085076×2
  • 81000279112
    $20.80
    bracket - 1000279112×1
  • 91000276093
    $22.47
    bracket - 1000276093×1
  • 101000238586
    $18.41
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×2
  • 111000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 121000109417
    $10.12
    Protection cap - 1000109417×1
  • 131000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 141000109416
    $8.43
    Protection cap - 1000109416×1
  • 151000452138Not stocked
    Hose×2
  • 161000290981
    $45.84
    SLHYDR 2SC 8,0PN10 90 PN10 0 L570,0S0 - 1000290981×2
  • 171000371573Not stocked
    Hose×1
  • 181000371571Not stocked
    Hose×1
  • 191000290982
    $38.64
    SLHYDR 2SC 8,0PN10 0 PN10 0 L520,0F0 - 1000290982×2
  • 201000371569Not stocked
    Hose×1
  • 211000371561Not stocked
    Hose×1
  • 221000290985
    $44.66
    SLHYDR 2SC 8,0PN10 0 PN10 0 L670,0F0 - 1000290985×2
