EZ17e

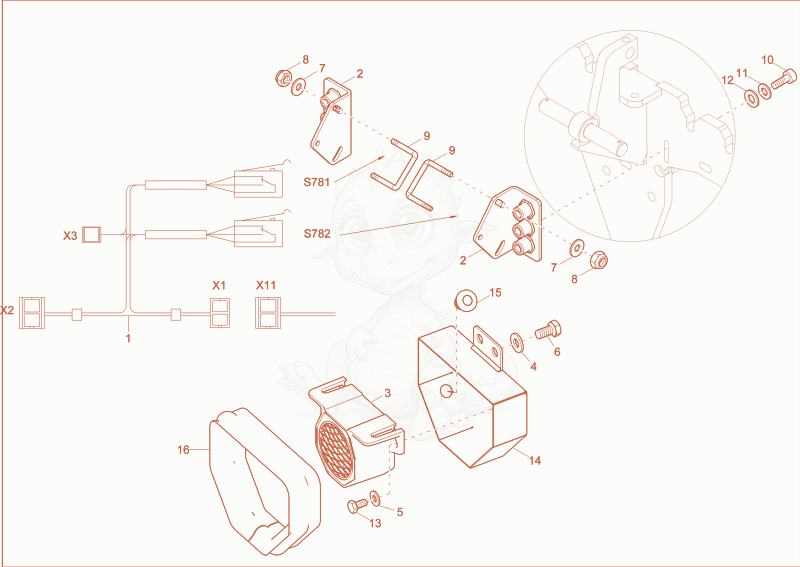

EZ17E driving signal (Option) Diagram

Exploded parts diagram of the driving signal (Option) of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000261933
    $214.93
    wiring harness - 1000261933×1
  • 21000281942
    $23.61
    BRACKET - 1000281942×2
  • 31000468452
    $149.14
    reversing alarm - 1000468452×1
  • 41000015448Not stocked
    washer×2
  • 51000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×4
  • 61000019136Not stocked
    hex screw×2
  • 71000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×4
  • 81000222521
    $1.42
    HEXAGON NUT - 1000222521×4
  • 91000281965
    $5.32
    U-Bolt - 1000281965×2
  • 101000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×4
  • 111000015436Not stocked
    lock washer×4
  • 121000015430Not stocked
    u-washer×4
  • 131000020553Not stocked
    hex screw×1
  • 141000454396Not stocked
    top cover×1
  • 151000124843
    $2.59
    cable sleeve - 1000124843×1
  • 161000098164
    $21.58
    rubber profile 1,5-3mm - 1000098164×0.38
  • S7811000237227
    $92.38
    switch - 1000237227×1
  • S7821000237227
    $92.38
    switch - 1000237227×1
  • X11000095336Not stocked
    plug sleeve housing×1
  • X111000000481Not stocked
    plug housing×1
  • X21000000481Not stocked
    plug housing×1
  • X31000085008
    $1.91
    PLUG HOUSING - 1000085008×1
