EZ17e

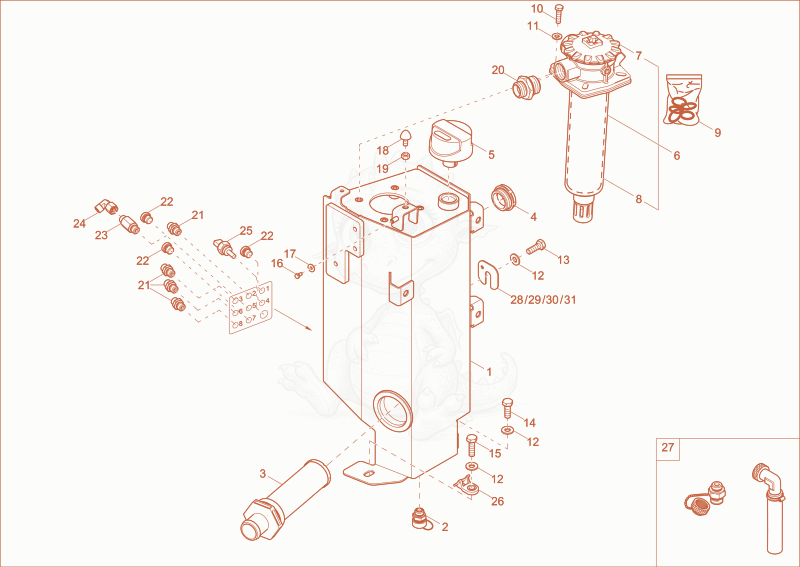

EZ17E HYDRAULIC OIL TANK Diagram

Exploded parts diagram of the HYDRAULIC OIL TANK of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000422575Not stocked
    hydraulic tank×1
  • 21000322340Not stocked
    service valve×1
  • 31000398398Not stocked
    suction filter×1
  • 41000002989Not stocked
    view glass×1
  • 51000261957
    $33.36
    venting filter (0,2bar) - 1000261957×1
  • 61000357347Not stocked
    reflux filter×1
  • 71000068821Not stocked
    cover back flow filter×1
  • 81000318994Not stocked
    reflux filter insert×1
  • 91000288321
    $21.08
    seal kit back flow filter - 1000288321×1
  • 101000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 111000015448Not stocked
    washer×4
  • 121000094974
    $0.70
    washer M10-DIN134 - 1000094974×3
  • 131000015364Not stocked
    hex screw×1
  • 141000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 151000015346Not stocked
    hex screw×1
  • 161000085377
    $0.68
    hex screw - 1000085377×1
  • 171000095342
    $1.22
    washer X-1000092302 - 1000095342×1
  • 181000274431
    $10.67
    Rubber buffer - 1000274431×1
  • 191000013021Not stocked
    hexagon nut×1
  • 201000083002
    $13.45
    GE22LR1EDOMDA3C - 1000083002×1
  • 211000015488Not stocked
    screw joint×4
  • 221000022438Not stocked
    screw joint×4
  • 231000179195
    $32.62
    extension - 1000179195×1
  • 241000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 251000302951
    $100.29
    temperature sensor EW/ET65,100,145 - 1000302951×1
  • 261000373433Not stocked
    sockets×1
  • 271000234781
    $23.54
    drain coupling M22x1,5 90° - 1000234781×1
  • 281000141773
    $32.48
    shim - 1000141773×1
  • 291000134431
    $3.28
    shim - 1000134431×1
  • 301000125638
    $7.33
    shim - 1000125638×1
  • 311000125639
    $9.00
    shim - 1000125639×1
