EZ17e

EZ17E OVERLAOD SYSTEM (OPTION) Diagram

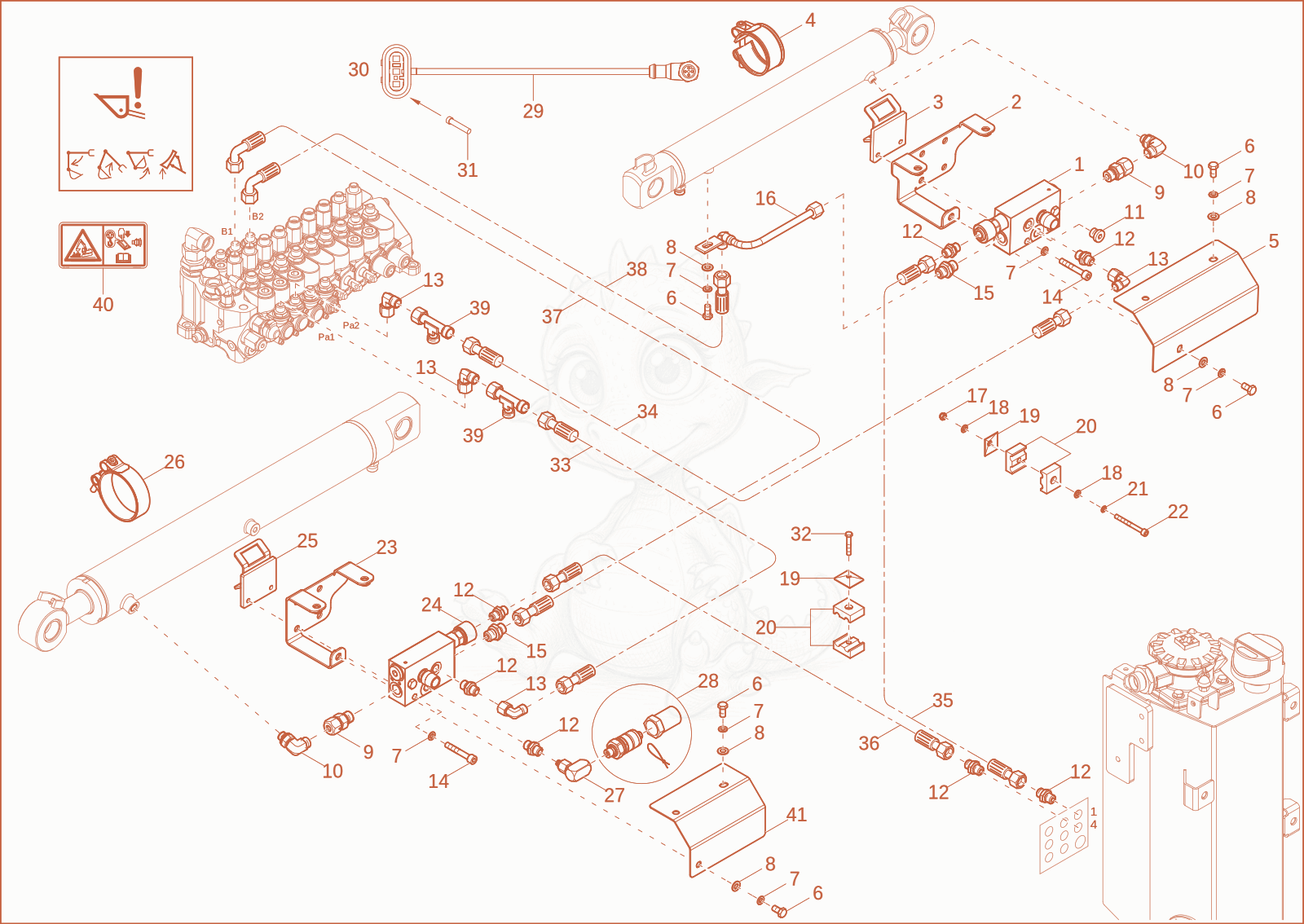

Exploded parts diagram of the OVERLAOD SYSTEM (OPTION) of a Wacker Neuson EZ17E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000429236Not stocked
    hose burst valve×1
  • 21000278711
    $152.97
    plate - 1000278711×1
  • 31000276094
    $12.38
    bracket - 1000276094×1
  • 41000279153
    $47.25
    Pipe Clamp - 1000279153×1
  • 51000278713
    $88.70
    protection plate - 1000278713×1
  • 61000019136Not stocked
    hex screw×7
  • 71000015437Not stocked
    lock washer×11
  • 81000015431Not stocked
    washer×7
  • 91000028676Not stocked
    screw joint×1
  • 101000060905
    $24.97
    WEE10LROMDA3C - 1000060905×2
  • 111000022438Not stocked
    screw joint×1
  • 121000015488Not stocked
    screw joint×7
  • 131000000542
    $11.08
    EW08LOMD - 1000000542×4
  • 141000048172Not stocked
    cheese head screw×4
  • 151000015491Not stocked
    screw joint×2
  • 161000276092
    $86.22
    pipe line - 1000276092×1
  • 171000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 181000015430Not stocked
    u-washer×2
  • 191000015628Not stocked
    cover plate×3
  • 201000168708
    $1.99
    clamp body - 1000168708×3
  • 211000015436Not stocked
    lock washer×1
  • 221000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×1
  • 231000284827
    $129.54
    plate - 1000284827×1
  • 241000428816Not stocked
    hose burst valve×1
  • 251000297166
    $21.70
    bracket - 1000297166×1
  • 261000238319
    $56.14
    Pipe Clamp - 1000238319×1
  • 271000268287
    $42.14
    WINKELVERSCHRAUBUNG ¼IG-8L - 1000268287×1
  • 281000299098
    $410.85
    KIT PRESSURE SWITCH - 1000299098×1
  • 291000283702
    $148.25
    cable overloadwarning - 1000283702×1
  • 301000265293
    $3.49
    Pin housing - 1000265293×1
  • 311000052627
    $1.00
    Plug - 1000052627×1
  • 321000015340Not stocked
    hex screw×2
  • 331000290972
    $79.67
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2400 S0 - 1000290972×1
  • 341000290962
    $77.09
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2500 S0 - 1000290962×1
  • 351000290974
    $61.18
    SLHYDR 1SCP5,0PN8 0 PN8 0 L1900 S0 - 1000290974×1
  • 361000290993
    $67.73
    SLHYDR 1SCP5,0PN8 0 PN8 0 L2350 S0 - 1000290993×1
  • 371000290995
    $59.91
    SLHYDR 1SCP5,0PN8 0 PN8 0 L2100 S0 - 1000290995×1
  • 381000293195
    $69.14
    SLHYDR 1SCP5,0PN8 0 PN8 0 L2700 S0 - 1000293195×1
  • 391000015515Not stocked
    screw joint×2
  • 401000264916
    $18.83
    STICKER - 1000264916×1
  • 411000284822
    $95.50
    Protection Plate - 1000284822×1
