Excavator EZ28

EZ28 blade cylinder (OPTION) Diagram

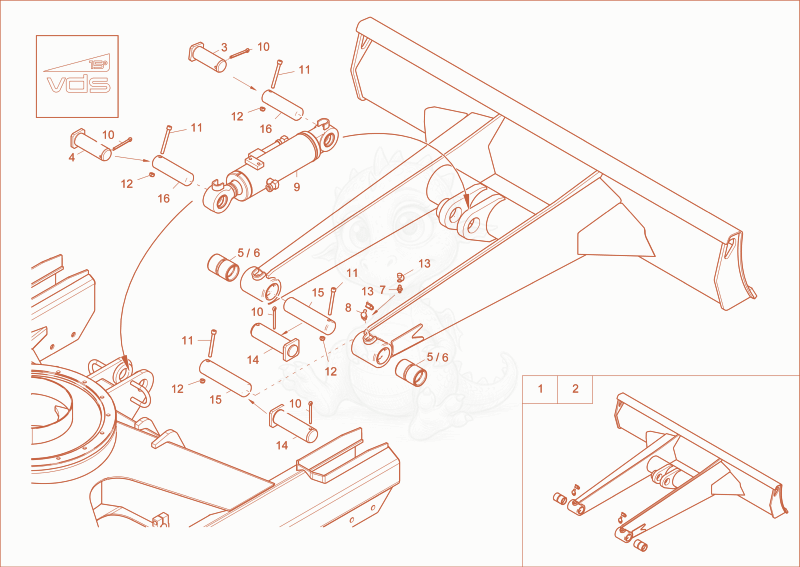

Exploded parts diagram of the blade cylinder (OPTION) of a Wacker Neuson EZ28, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000314762Not stocked
    PRE-ASSEMBLED DOZER BLADE×1
  • 21000419610Not stocked
    PRE-ASSEMBLED DOZER BLADE×1
  • 31000294702
    $69.00
    PIN - 1000294702×1
  • 41000294701
    $38.05
    PIN - 1000294701×1
  • 51000083211
    $26.32
    STEEL BUSHING - 1000083211×2
  • 61000375855Not stocked
    steel bushing×2
  • 71000015475Not stocked
    grease nipple×2
  • 81000082781
    $5.01
    GREASE NIPPLE - 1000082781×2
  • 91000242441
    $1,076.16
    Bladecylinder 1000242441×1
  • 101000280889
    $1.91
    DINENISO1234-6,3x63-A2C - 1000280889×2
  • 111000085467
    $0.98
    cheese head screw - 1000085467×4
  • 121000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×4
  • 131000020783Not stocked
    cap grease nipple×2
  • 141000294698
    $87.08
    Pin 1000294698×2
  • 151000368877Not stocked
    pin×2
  • 161000411523Not stocked
    pin×2
