Excavator EZ28

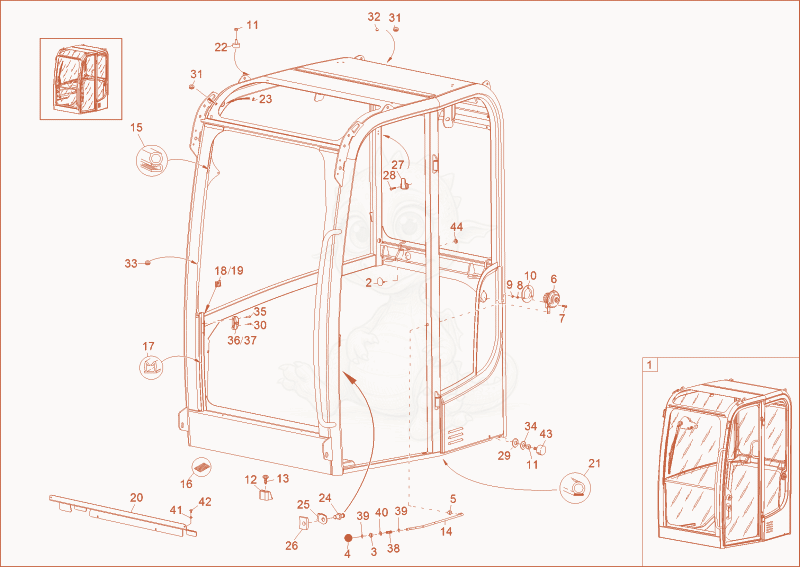

EZ28 CABIN FRAME Diagram

Exploded parts diagram of the CABIN FRAME of a Wacker Neuson EZ28, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000261911
    $24,383.15
    Cabin 1000261911×1
  • PLUG - 1000266593×1
  • 31000251804
    $19.86
    mounting - 1000251804×1
  • 41000124794
    $26.95
    ball head - 1000124794×1
  • DIN985-M8-8-A2C - 1000015416×1
  • 61000124796
    $122.14
    door fastener - 1000124796×1
  • ovalhead screw - 1000124798×3
  • Washer M5,3-DIN134 - 1000094967×3
  • HEXAGON NUT - 1000085587×3
  • 101000124797
    $11.44
    rubber disc - 1000124797×1
  • 111000049046Not stocked
    hexagon nut×3
  • 121000066203Not stocked
    clamp shoe×2
  • 131000015386Not stocked
    ovalhead screw×2
  • 141000267600
    $156.37
    antilock rod - 1000267600×1
  • 151000153158
    $48.82
    PROFILE - 1000153158×3.5
  • 161000097235
    $42.45
    seal strap - 1000097235×0.8
  • 171000097236
    $49.36
    slide window seal - 1000097236×1
  • 181000241675
    $3.22
    rubber seal - 1000241675×1
  • 191000241676
    $4.10
    rubber seal - 1000241676×1
  • 201000253891
    $200.95
    Cover 1000253891×1
  • 211000216347
    $25.21
    sealing profile - 1000216347×4.2
  • 221000245364
    $42.09
    RUBBER BUFFER - 1000245364×2
  • 231000152959
    $2.95
    thread pin - 1000152959×2
  • 241000004271Not stocked
    catch bolt×1
  • 251000075584
    $3.16
    BRACKET - 1000075584×1
  • 261000068933Not stocked
    thread plate×1
  • 271000124822
    $19.56
    cloth hook - 1000124822×1
  • 281000048516Not stocked
    flat head screw×1
  • 291000004289Not stocked
    rubber disc×1
  • 301000124798
    $2.61
    ovalhead screw - 1000124798×2
  • 311000075523
    $2.92
    blind plug - 1000075523×5
  • 321000068932Not stocked
    blind plug×2
  • 331000066256Not stocked
    sleeve×4
  • 341000012879Not stocked
    quad ring×1
  • 351000015395Not stocked
    ovalhead screw×2
  • 361000003866Not stocked
    catch-rests×1
  • 371000003867Not stocked
    catch-rests×1
  • 381000251799
    $18.78
    pressure spring - 1000251799×1
  • 391000049454Not stocked
    lock washer×2
  • 401000015448Not stocked
    washer×1
  • 411000233504
    $2.45
    washer - 1000233504×2
  • 421000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×2
  • 431000191006
    $29.62
    RUBBER BUFFER - 1000191006×1
  • 441000265272
    $14.07
    rubber sleeve 10/18/22-3 closed - 1000265272×1
