Excavator EZ28

EZ28 chassis Diagram

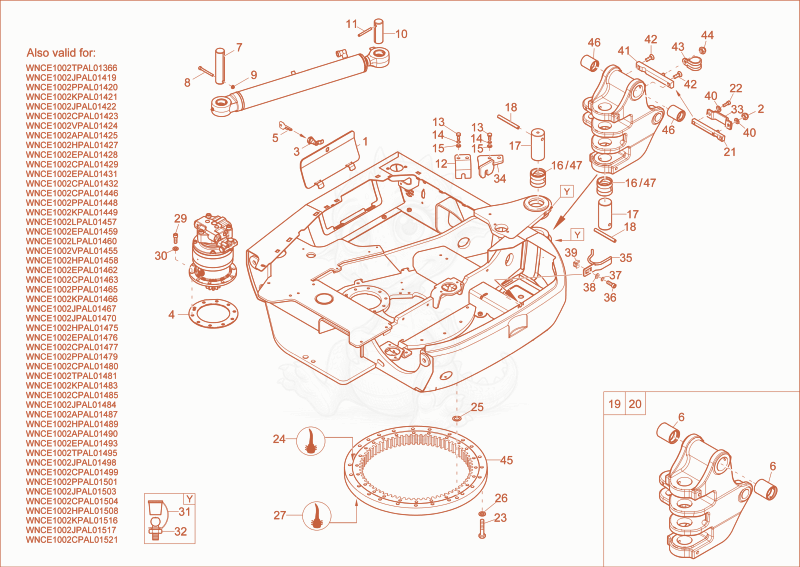

Exploded parts diagram of the chassis of a Wacker Neuson EZ28, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000176632
    $239.22
    Cover 1000176632×1
  • 21000015407Not stocked
    hexagon nut×1
  • 31000069463Not stocked
    cylinder lock×1
  • 41000298295
    $66.23
    shim - 1000298295×1
  • 51000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 61000083214
    $23.25
    STEEL BUSHING - 1000083214×2
  • 71000294696
    $40.08
    Pin 1000294696×1
  • 81000085319
    $1.28
    6-Point screw M8x80-8.8 A2C - 1000085319×1
  • 91000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 101000294703
    $52.25
    PIN - 1000294703×1
  • 111000082715
    $1.28
    cotter pin 8x80 - 1000082715×1
  • 121000263301
    $18.24
    torque support - 1000263301×1
  • 131000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 141000015438Not stocked
    lock washer×2
  • 151000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 161000139603
    $68.61
    STEEL BUSHING - 1000139603×2
  • 171000294695
    $100.49
    Pin 1000294695×2
  • 181000110018
    $11.61
    cotter pin - 1000110018×2
  • 191000315944Not stocked
    swivel console premounted×1
  • 201000315945Not stocked
    swivel console premounted×1
  • 211000289792
    $20.22
    hose clamp - 1000289792×1
  • 221000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×2
  • 231000085370
    $1.35
    hex screw - 1000085370×15
  • 241000097244
    $54.76
    gasket slewing gear - 1000097244×1.8
  • 251000095054
    $1.38
    O-RING - 1000095054×1
  • 261000082611
    $0.90
    washer 13 A2C DIN6916 - 1000082611×15
  • 271000097244
    $54.76
    gasket slewing gear - 1000097244×1.8
  • 281000015438Not stocked
    lock washer×1
  • 291000015356Not stocked
    cheese head screw×10
  • 301000015450Not stocked
    northlock disc×10
  • 311000015480Not stocked
    cap grease nipple×2
  • 321000015475Not stocked
    grease nipple×2
  • 331000259458
    $27.13
    clamp bar - 1000259458×1
  • 341000233801
    $94.42
    torque support - 1000233801×1
  • 351000271781
    $18.30
    Holder - 1000271781×1
  • 361000019593Not stocked
    cheese head screw×1
  • 371000015437Not stocked
    lock washer×1
  • 381000015431Not stocked
    washer×1
  • 391000015425Not stocked
    cage nut×1
  • 401000015438Not stocked
    lock washer×2
  • 411000358722Not stocked
    hose clamp×1
  • 421000099338
    $1.34
    COUNTERSUNK SCREW - 1000099338×2
  • 431000062589Not stocked
    pipe clamp×1
  • 441000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 451000257833
    $7,525.58
    Slewingring2503Ez283027 1000257833×1
  • 461000352495Not stocked
    steel bushing×2
  • 471000352493Not stocked
    steel bushing×2
