Excavator EZ28

EZ28 boom cylinder Diagram

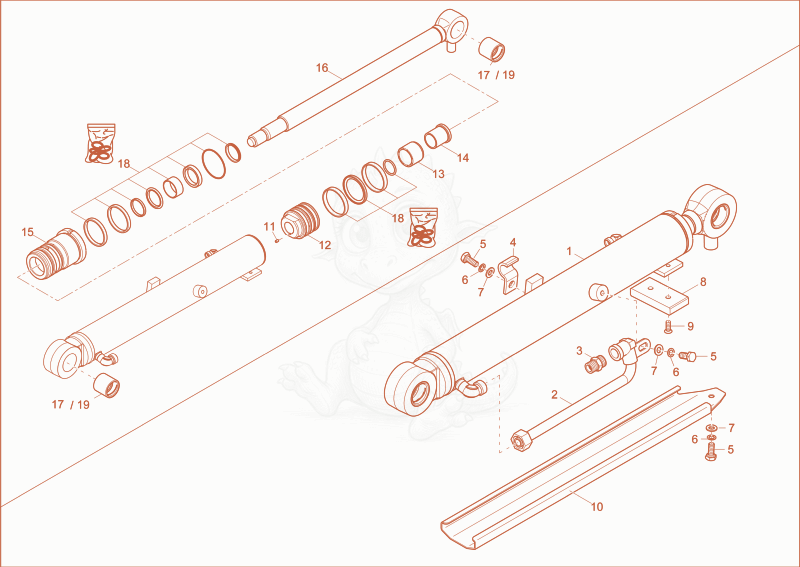

Exploded parts diagram of the boom cylinder of a Wacker Neuson EZ28, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000366047
    $2,254.85
    lifting arm cylinder E10-02 (WN) - 1000366047×1
  • 21000385041Not stocked
    cylinder pipes assy.×1
  • 31000015493Not stocked
    screw joint×1
  • 41000015634Not stocked
    pipe clamp×1
  • 51000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 61000015438Not stocked
    lock washer×3
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×3
  • 81000146695
    $36.62
    guide-element - 1000146695×1
  • 91000015373Not stocked
    countersunk screw×2
  • 101000163293
    $73.70
    Protectingrail 1000163293×1
  • 111000015374Not stocked
    thread pin×1
  • 121000151810
    $33.77
    PISTON - 1000151810×1
  • 131000164479
    $167.70
    BUSHING SHOCK ABSORBER - 1000164479×1
  • 141000176272
    $205.43
    FASTEN BUSHING - 1000176272×1
  • 151000176275
    $356.87
    Guidebushing 1000176275×1
  • 161000176274
    $603.47
    Pistonrod 1000176274×1
  • 171000019750Not stocked
    steel bushing×2
  • 181000176276
    $267.81
    CYLINDER SEAL KIT - 1000176276×1
  • 191000352491Not stocked
    steel bushing×2
