Excavator EZ28

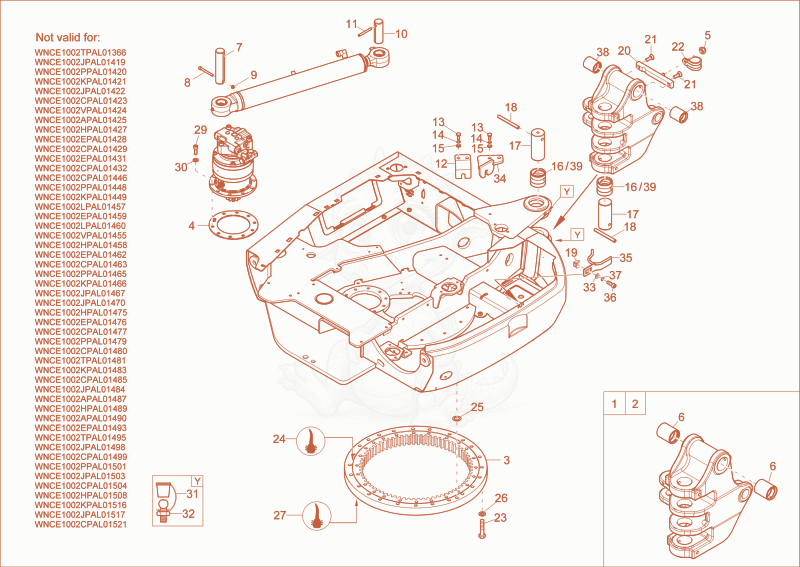

EZ28 chassis Diagram
- 11000315944Not stockedswivel console premounted×1
- 21000315945Not stockedswivel console premounted×1
- 31000317419Not stockedslewing ring×1
- 41000361808Not stockedshim×1
- nut M10-8 A2C-DIN985 - 1000015408×1
- STEEL BUSHING - 1000083214×2
- Pin 1000294696×1
- 6-Point screw M8x80-8.8 A2C - 1000085319×1
- DIN985-M8-8-A2C - 1000015416×1
- PIN - 1000294703×1
- cotter pin 8x80 - 1000082715×1
- torque support - 1000263301×1
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
- 141000015438Not stockedlock washer×2
- washer 10,5 A2C DIN125 - 1000015432×2
- STEEL BUSHING - 1000139603×2
- Pin 1000294695×2
- cotter pin - 1000110018×2
- 191000015425Not stockedcage nut×1
- 201000358722Not stockedhose clamp×1
- COUNTERSUNK SCREW - 1000099338×2
- 221000062589Not stockedpipe clamp×1
- 231000317381Not stockedhex screw×24
- gasket slewing gear - 1000097244×1.8
- O-RING - 1000095054×1
- 261000015453Not stockednorthlock disc×24
- gasket slewing gear - 1000097244×1.8
- 281000015438Not stockedlock washer×1
- 291000015356Not stockedcheese head screw×10
- 301000015450Not stockednorthlock disc×10
- 311000015480Not stockedcap grease nipple×2
- 321000015475Not stockedgrease nipple×2
- 331000015431Not stockedwasher×1
- torque support - 1000233801×1
- Holder - 1000271781×1
- 361000019593Not stockedcheese head screw×1
- 371000015437Not stockedlock washer×1
- 381000352495Not stockedsteel bushing×2
- 391000352493Not stockedsteel bushing×2
