G25-GENERATOR,COLD WEATHER

G25 Engine cpl. Diagram

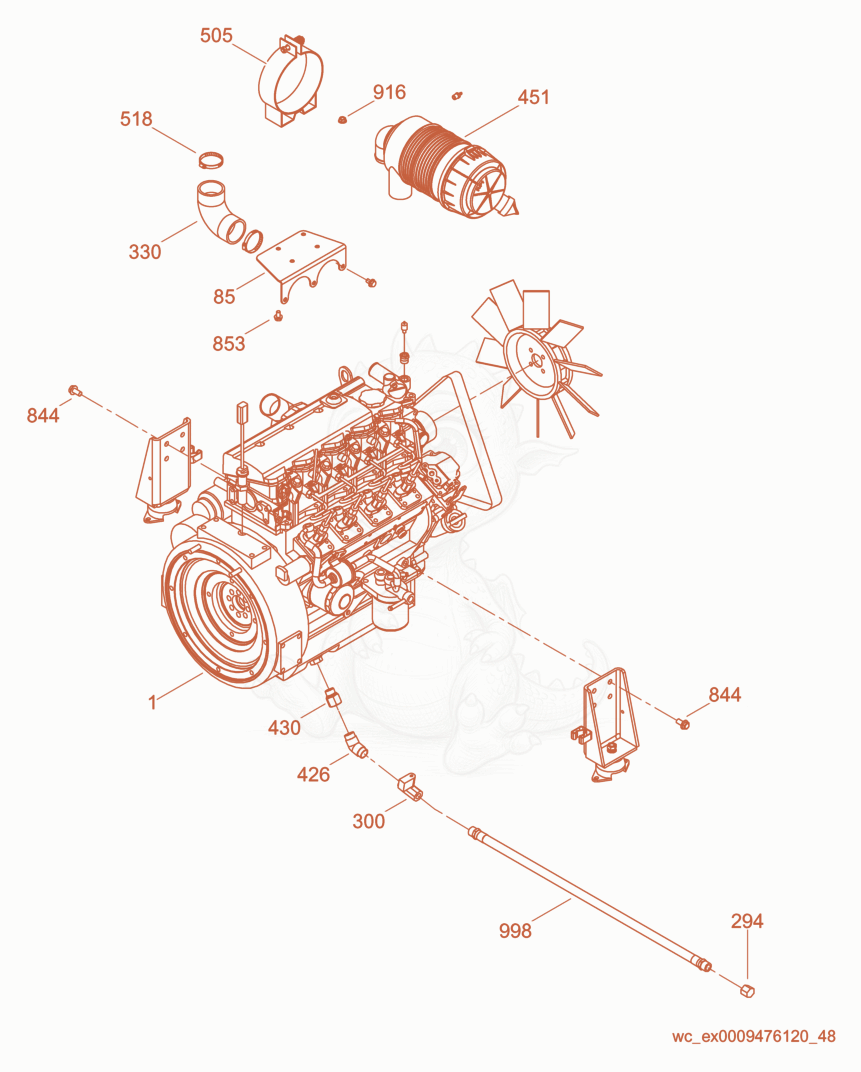

Exploded parts diagram of the Engine cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152959Not stocked
    Isuzu engine×1
  • 855000159022
    $46.53
    BRACKET-AIR CLEANER - 5000159022×5
  • 2945000154343
    $2.08
    PLUG-1/2 NPT HEX,NYLON - 5000154343×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 3305000150178
    $61.77
    HOSE-INTAKE MANIFOLD - 5000150178×2
  • 4265000154306
    $10.27
    FITTING 1/2 STREET 45 - 5000154306×1
  • 4305000154302
    $75.96
    FITTING-M20 MALE X 1/2 NPT - 5000154302×1
  • 4515000157231
    $63.20
    FILTER-AIR CLEANER - 5000157231×1
  • 5055000158795
    $12.22
    CLAMP-AIR CLEANER,5.72 INCH - 5000158795×1
  • 5185000119906
    $1.28
    CLAMP-HOSE,#20,.81-1.75 - 5000119906×2
  • 8445000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×10
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×5
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9985000155371Not stocked
    Hose Kit×1
