G25-GENERATOR,COLD WEATHER

G25 Lug Plate cpl. Diagram

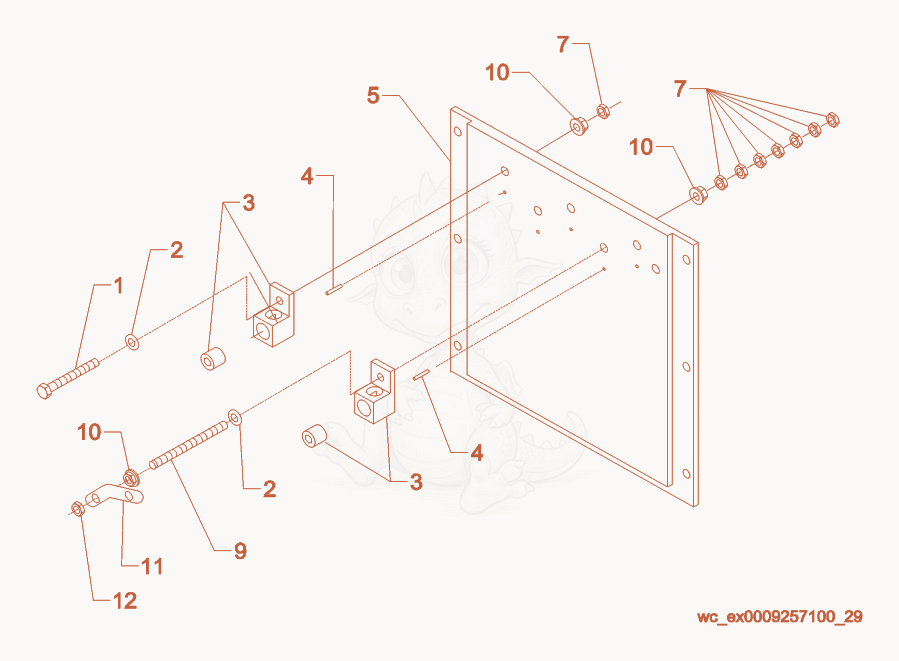

Exploded parts diagram of the Lug Plate cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011450
    $0.32
    SCREW M8 X 60,HX.HD. - 5000011450×2
  • 25000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 35000153091
    $13.27
    LUG-TERMINAL - 5000153091×4
  • 45000155215
    $0.28
    PIN-ROLL 1/8 X 3/4 ZP - 5000155215×4
  • 55000153240
    $519.75
    Plate Lug,Glastic,Small 5000153240×1
  • 75000010805
    $0.06
    NUT-M8,JAM - 5000010805×18
  • 95000152980Not stocked
    Stud×2
  • 105000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×7
  • 115000152975
    $17.08
    NLA CONNECTOR,LO TO GRND - 5000152975×1
  • 125000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
