G25-GENERATOR,COLD WEATHER

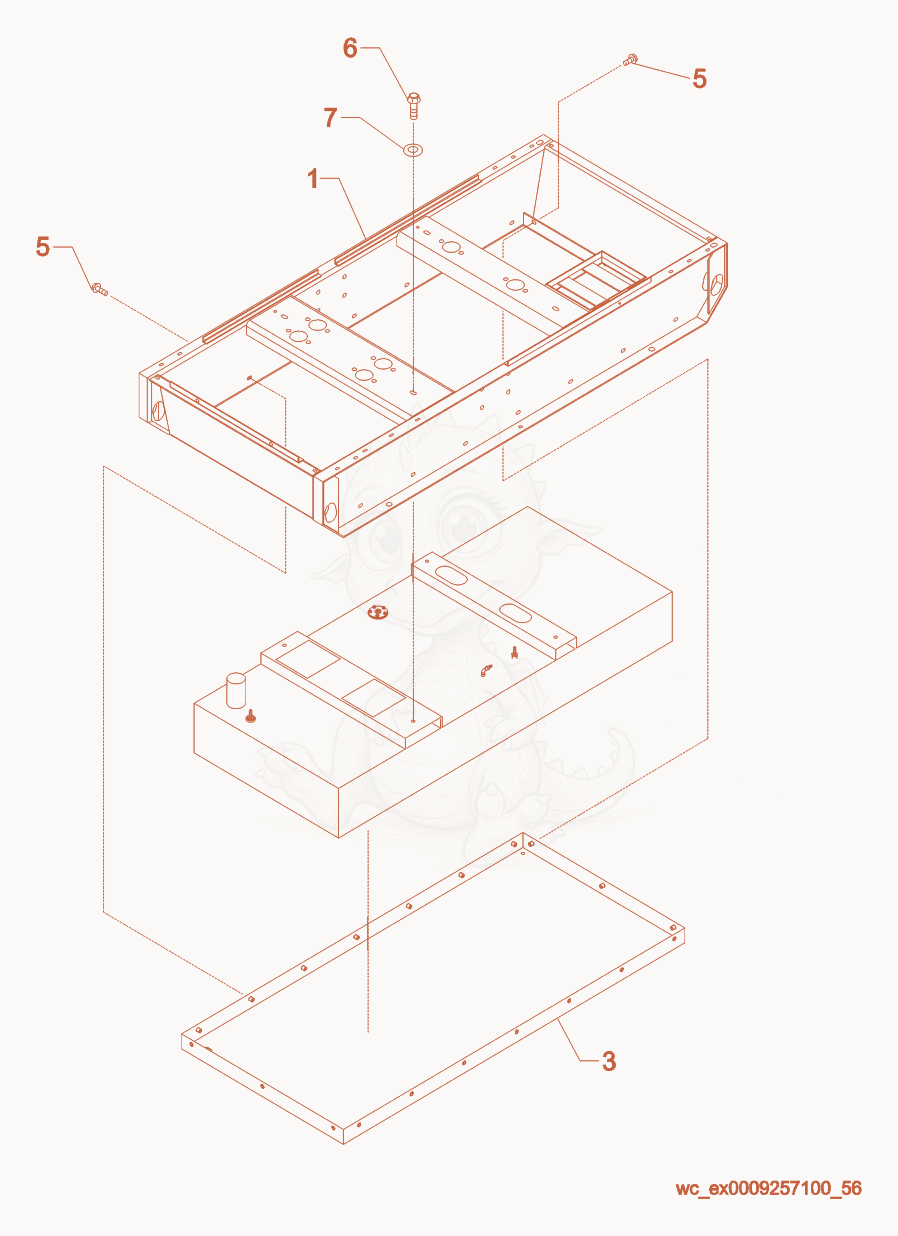

G25 Skid Assembly Diagram

Exploded parts diagram of the Skid Assembly of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152946
    $1,778.30
    FRAME-WELDMENT SKID,SML - 5000152946×1
  • 35000153019
    $267.66
    PANEL-BOTTOM PAN,WELDMENT - 5000153019×1
  • 55000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×12
  • 65000155247
    $7.76
    SCREW M12X35-10.9 HX SER FLG - 5000155247×4
  • 75000010376
    $0.29
    WASHER A13 FLAT - 5000010376×4
