G25-GENERATOR,COLD WEATHER

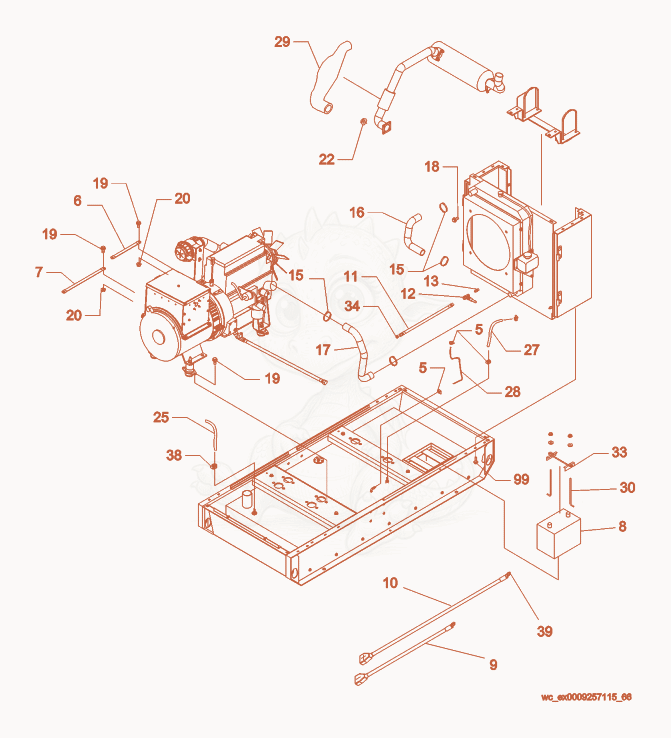

G25 Generator cpl. Diagram

Exploded parts diagram of the Generator cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×4
  • 65000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×1
  • 75000152979
    $16.84
    STRAP GROUND 15IN - 5000152979×1
  • 85000153758
    $202.25
    BATTERY-WET,GR 34 - 5000153758×1
  • 95000153233
    $11.37
    CABLE-BATTERY,NEGATIVE - 5000153233×1
  • 105000153232
    $24.62
    CABLE-BATTERY,POSITIVE - 5000153232×1
  • 115000155371Not stocked
    Hose Kit×1
  • 125000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 135000155395
    $6.58
    FITTING-1/4 NPT X 1/2 NPT - 5000155395×1
  • 155000112287
    $1.99
    CLAMP-THREADED,1.56-2.50 - 5000112287×4
  • 165000153056
    $16.73
    HOSE-RADIATOR TOP - 5000153056×1
  • 175000153057
    $21.18
    HOSE-RADIATOR BOTTOM - 5000153057×1
  • 185000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
  • 195000154521
    $1.22
    SCREW M10X20-10.9 HX SFLG MZP - 5000154521×12
  • 205000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×2
  • 225000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 255000155290
    $16.81
    HOSE-FUEL 5/8 X 915MM - 5000155290×1
  • 275000152976
    $8.07
    HOSE-FUEL PICKUP - 5000152976×1
  • 285000152977
    $23.56
    HOSE-FUEL RETURN - 5000152977×1
  • 295000154754
    $472.10
    INSULATOR-EXHAUST,G25 - 5000154754×1
  • 305000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 335000153763
    $5.19
    CLAMP-BATTERY HOLD DOWN - 5000153763×1
  • 345000154343
    $2.08
    PLUG-1/2 NPT HEX,NYLON - 5000154343×1
  • 385000028314
    $0.78
    CLAMP-THREADED,.81-1.5 - 5000028314×2
  • 605000087697
    $5.78
    COVER-BATTERY TERMINAL - 5000087697×1
  • 995000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
