G25-GENERATOR,COLD WEATHER

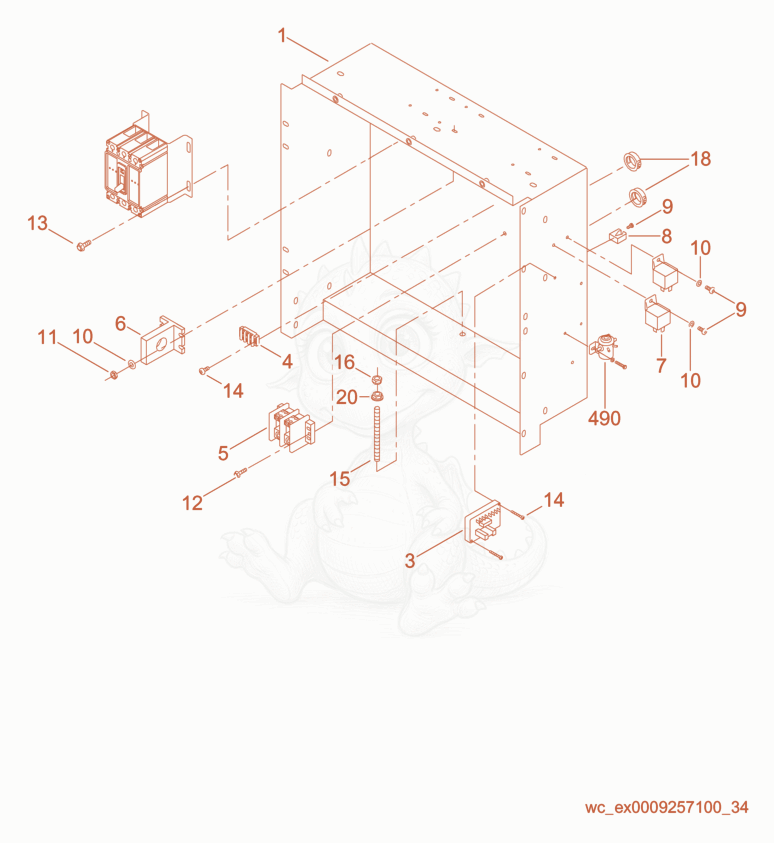

G25 Enclosure cpl. Diagram

Exploded parts diagram of the Enclosure cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000155490
    $523.23
    BOX-CONTROL ENCLOSURE,SML - 5000155490×1
  • 35000155235
    $1,376.22
    REGULATOR-VOLTAGE,SE350 - 5000155235×1
  • 45000153274
    $2.18
    TERMINAL BLOCK-3 POS. - 5000153274×1
  • 55000153084
    $762.30
    TERMINAL,2 POLE,12 CONNECTION - 5000153084×1
  • 65000153231
    $53.72
    TRANSFORMER-CURRENT,100:5A - 5000153231×3
  • 75000154386
    $16.23
    RELAY W/DIODE - 5000154386×2
  • 85000153747
    $4.20
    CLIP-SPRING HOLDER - 5000153747×1
  • 95000154515
    $0.03
    SCREW M5X12-4.8 PAN HD ZP - 5000154515×3
  • 105000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×12
  • 115000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×12
  • 125000154519
    $0.46
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×2
  • 135000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 145000154514
    $0.07
    SCREW M4X35-4.8-H PAN HD ZP - 5000154514×4
  • 155000152980Not stocked
    Stud×1
  • 165000010805
    $0.06
    NUT-M8,JAM - 5000010805×1
  • 185000153094
    $0.31
    BUSHING 1-3/8 IN. I.D. - 5000153094×1
  • 205000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 4905000153226
    $76.73
    RELAY-65 AMP,12 VOLT - 5000153226×1
