G25-GENERATOR,COLD WEATHER

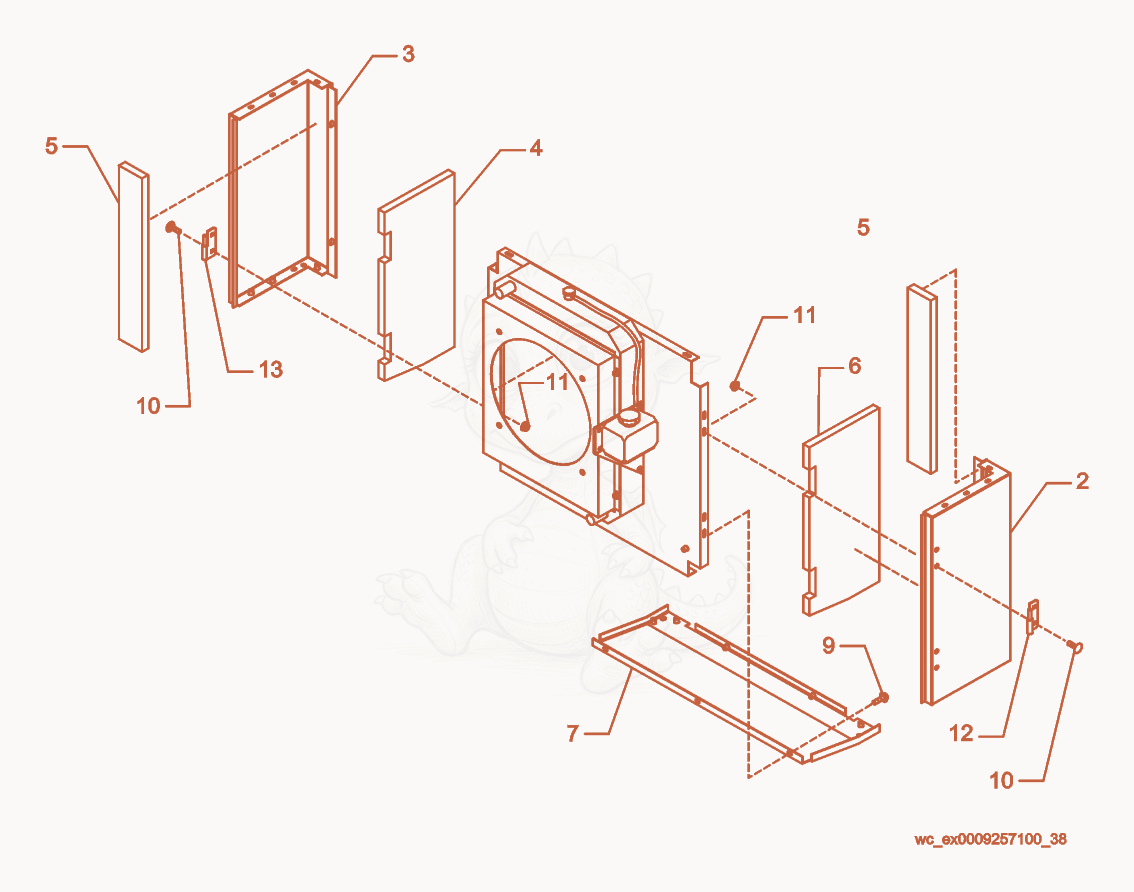

G25 Radiator Section cpl. Diagram

Exploded parts diagram of the Radiator Section cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000152953
    $158.95
    PANEL-RT FRONT SIDE,WELDMENT - 5000152953×1
  • 35000152955
    $197.73
    PANEL-LFT FRONT SIDE,WELDMENT - 5000152955×1
  • 45000152856
    $334.39
    INSULATOR-EXHAUST COMP LEFT - 5000152856×1
  • 55000152857
    $321.56
    INSULATOR-EXHAUST COMP FRONT - 5000152857×2
  • 65000152855
    $334.39
    INSULATOR-EXHAUST COMP RIGHT - 5000152855×1
  • 75000152951
    $144.36
    PANEL-SPLASH PAN WELDMENT - 5000152951×1
  • 95000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×3
  • 105000011153
    $0.22
    BOLT-CARRIAGE M8X20 - 5000011153×8
  • 115000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
  • 125000153026
    $31.55
    HINGE-DOOR,RIGHT SIDE - 5000153026×2
  • 135000153027
    $35.99
    HINGE-DOOR,LEFT SIDE - 5000153027×2
