G25-GENERATOR,COLD WEATHER

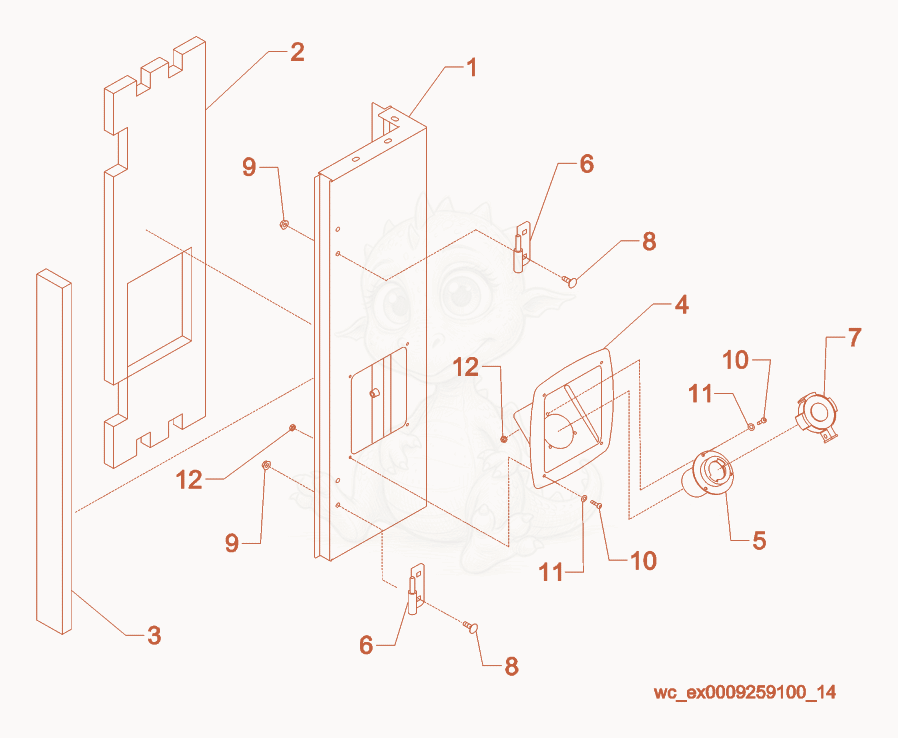

G25 Fuel Fill Corner Diagram

Exploded parts diagram of the Fuel Fill Corner of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000153006
    $932.12
    PANEL-REAR SIDE LEFT,WELDMENT - 5000153006×1
  • 25000152859
    $327.12
    INSULATOR-LEFT REAR CORNER - 5000152859×1
  • 35000152860
    $319.07
    INSULATOR-REAR CORNER - 5000152860×1
  • 45000153002
    $47.11
    PORT-FUEL FILL - 5000153002×1
  • 55000153013
    $56.33
    TUBE-FILLER,WELDMENT P - 5000112007 - 5000153013×1
  • 65000153026
    $31.55
    HINGE-DOOR,RIGHT SIDE - 5000153026×2
  • 75000153424
    $127.73
    CAP-FUEL FILL - 5000153424×1
  • 85000011153
    $0.22
    BOLT-CARRIAGE M8X20 - 5000011153×4
  • 95000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 105000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×7
  • 115000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×7
  • 125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×7
