G25-GENERATOR,COLD WEATHER

G25 Engine/Generator cpl. Diagram

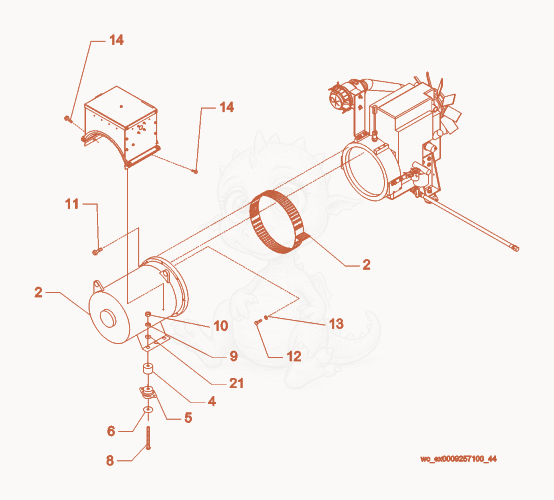

Exploded parts diagram of the Engine/Generator cpl. of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000152988
    $8,857.83
    Generator G25 5000152988×1
  • 45000153008
    $32.66
    SPACER 2.00 OD X 1.50 L - 5000153008×2
  • 55000155151
    $88.74
    SHOCKMOUNT-RUBBER,200LBS - 5000155151×2
  • 65000153066
    $5.36
    WASHER-SNUBBER - 5000153066×2
  • 85000154524
    $3.03
    SCREW M12X140-8.8 HXHD BN57 ZP - 5000154524×2
  • 95000012648
    $0.14
    WASHER-LOCK B12 - 5000012648×2
  • 105000010884
    $0.26
    NUT M12 8,HEX - 5000010884×2
  • 115000155250
    $0.56
    SCREW M10X30 HX HD 10.9 PLAIN - 5000155250×8
  • 125000154520
    $0.18
    SCREW M8X16 HX HD 10.9 PLAIN - 5000154520×8
  • 135000154529
    $0.03
    WASHER M8 HARDENED BLK TP 200 - 5000154529×8
  • 145000080264
    $11.80
    SCREW 1/4-20 X 5/8 W/FW,HX.HD. - 5000080264×4
  • 215000010620
    $0.26
    WASHER B13 FLAT - 5000010620×2
