G25-GENERATOR,COLD WEATHER

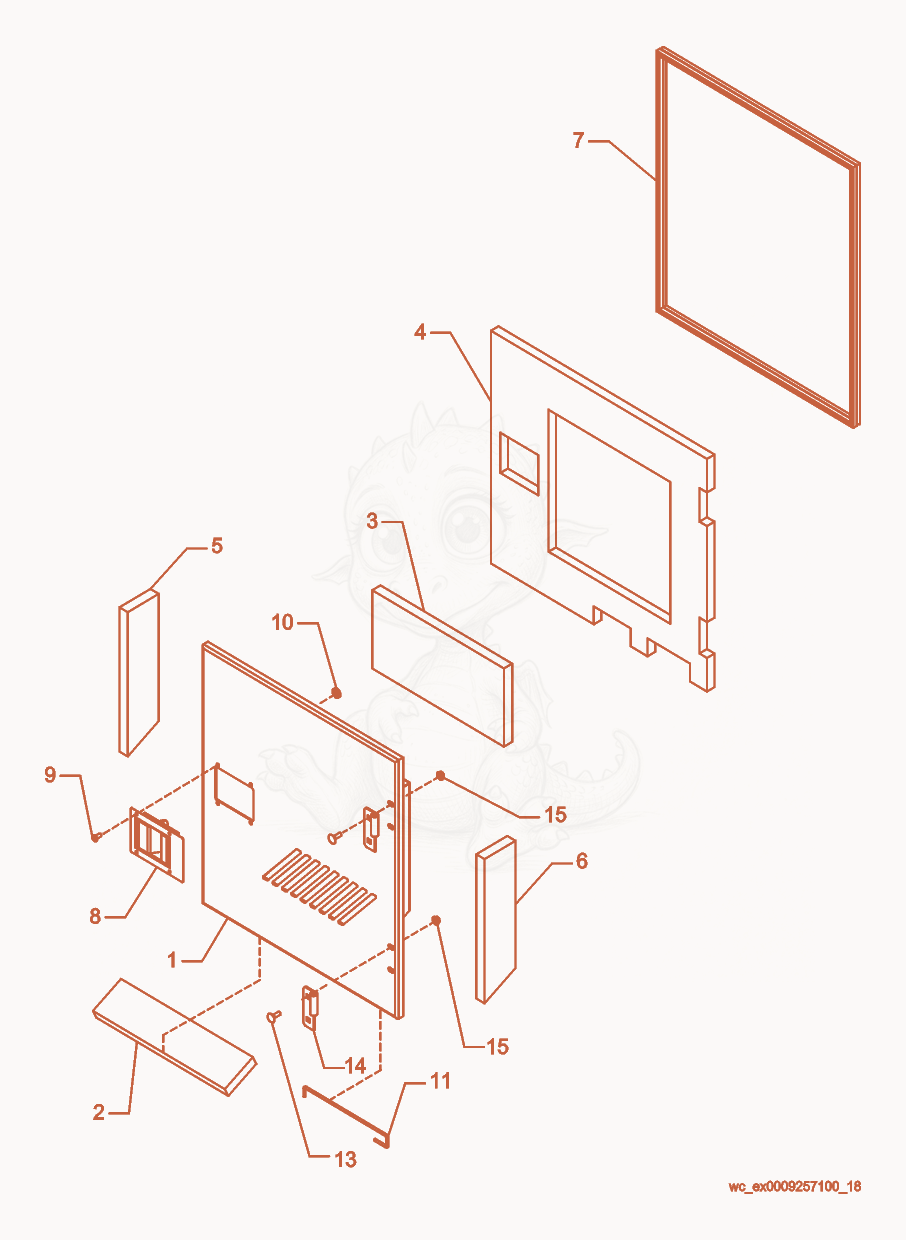

G25 Right Front Door Diagram

Exploded parts diagram of the Right Front Door of a Wacker Neuson G25, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000153110
    $252.66
    DOOR-FRONT,RIGHT,WELDMENT - 5000153110×1
  • 25000152866
    $322.41
    INSULATOR-DUCT BOTTOM - 5000152866×1
  • 35000152852
    $266.49
    INSULATOR-DUCT FRONT - 5000152852×1
  • 45000152849
    $289.82
    INSULATOR-RIGHT FRONT DOOR - 5000152849×1
  • 55000152853
    $258.17
    INSULATOR-DUCT RIGHT SIDE - 5000152853×1
  • 65000152854
    $258.17
    INSULATOR-DUCT LEFT SIDE - 5000152854×1
  • 75000153258
    $77.12
    X-5200012962 SEAL-LH & RH FRNT DOOR - 5000153258×1
  • 85000153503
    $261.80
    HANDLE-DOOR,BLACK PADDLE - 5000153503×1
  • 95000154511
    $1.61
    NLA RIVET-SS0644SSBS 1/16 THICK - 5000154511×4
  • 105000155260
    $0.03
    WASHER M5-A2 304 FLAT SS - 5000155260×4
  • 115000153022
    $28.99
    ROD-DOOR PROP - 5000153022×1
  • 135000011153
    $0.22
    BOLT-CARRIAGE M8X20 - 5000011153×4
  • 145000153026
    $31.55
    HINGE-DOOR,RIGHT SIDE - 5000153026×2
  • 155000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
