G625 Generator, Standard T2

G625 Fuel System Diagram

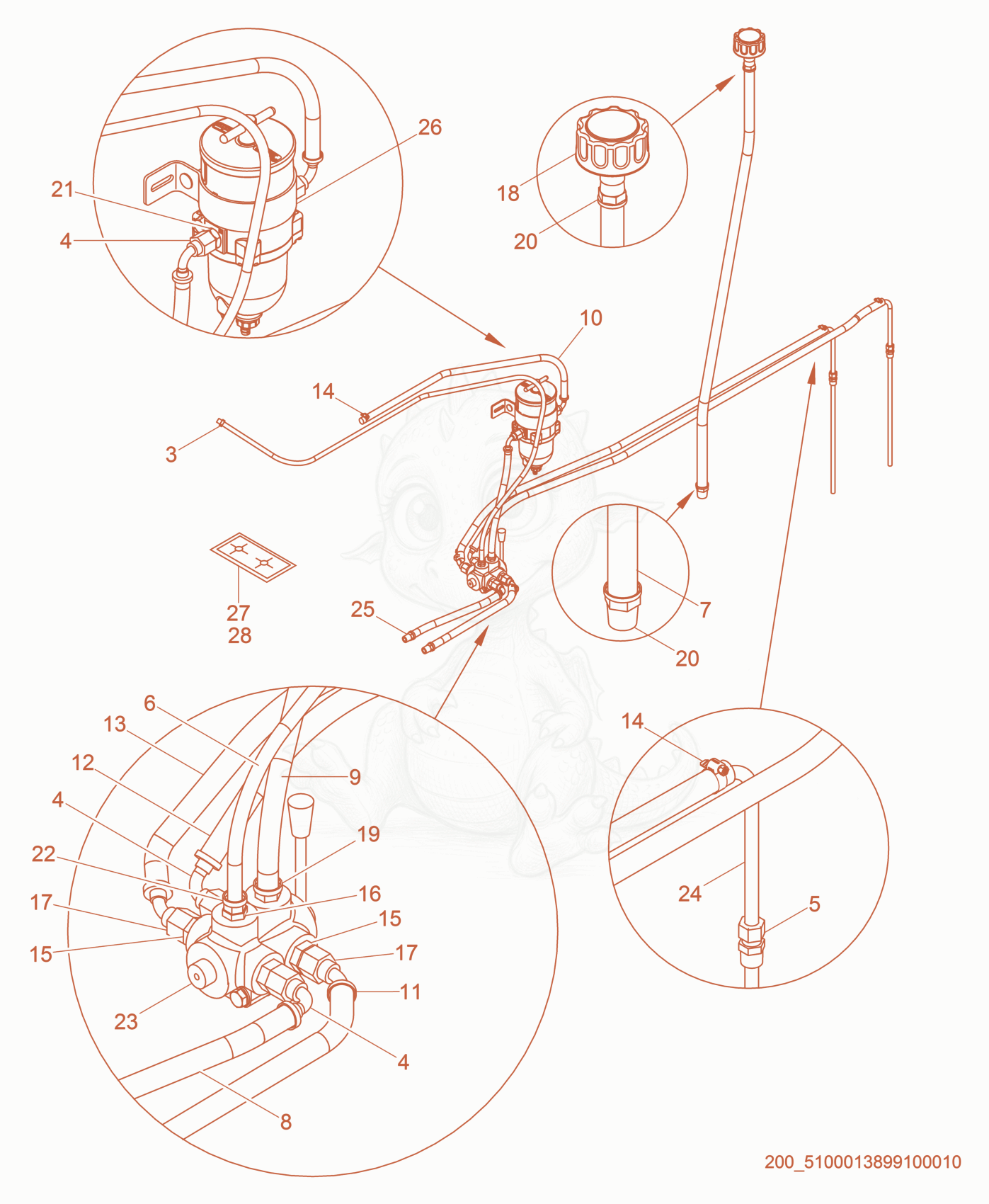

Exploded parts diagram of the Fuel System of a Wacker Neuson G625, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100019179
    $2.83
    O Clip (10mm) - 5100019179×1
  • 45100019180
    $22.11
    Hydraulic Adaptor 90° Elbow - 5100019180×4
  • 55100019181
    $9.47
    Compression Fitting Brass Male Stud - 5100019181×2
  • 65100019182
    $11.51
    COTTON OVERBRAID FUEL HOSE 6mm - 5100019182×1
  • 75100019183
    $25.64
    HOSE 3/4" SAE100R6 - 5100019183×1
  • 85100019184
    $14.15
    HOSE 3/8" SAE100R6 - 5100019184×1
  • 95100019184
    $14.15
    HOSE 3/8" SAE100R6 - 5100019184×1
  • 105100019184
    $14.15
    HOSE 3/8" SAE100R6 - 5100019184×1
  • 115100019184
    $14.15
    HOSE 3/8" SAE100R6 - 5100019184×1
  • 125100019184
    $14.15
    HOSE 3/8" SAE100R6 - 5100019184×1
  • 135100019184
    $14.15
    HOSE 3/8" SAE100R6 - 5100019184×1
  • 145100019185
    $4.16
    11-16mm Jubille Clamp - 5100019185×3
  • 155100019186
    $4.51
    Male Adaptor - 5100019186×4
  • 165100019187
    $7.85
    Nickel Plated Brass Bush - 5100019187×1
  • 175100019188
    $19.46
    Hydraulic Adaptor 45° Elbow - 5100019188×2
  • 185100019189
    $187.41
    INLET PIPE - 5100019189×1
  • 195100019190
    $24.75
    Male Hose Inser - 5100019190×1
  • 205100019191
    $38.02
    Male Hose Insert - 5100019191×2
  • 215100019192
    $18.58
    Bulkhead Adaptor - 5100019192×2
  • 225100019193
    $21.22
    Male Hose Insert - 5100019193×1
  • 235100019194
    $257.39
    3/8 DIVERTER VALVE - 5100019194×1
  • 245100019195
    $106.10
    Ø10 Fuel pick up pipe 520mm, 90° - 5100019195×2
  • 255100019196
    $14.15
    Male Hose Insert - 5100019196×2
  • 265100019197
    $1,016.70
    RACOR FUEL FILTER ASSY - 5100019197×1
  • 275100027874
    $33.59
    GASKET, EXTERNAL FUEL CONNECT, G625 - 5100027874×1
  • 285100027842
    $76.03
    Clamp-Fuel Connection, G625 - 5100027842×1
