G625 Generator, Standard T2

G625 Control Panel Diagram

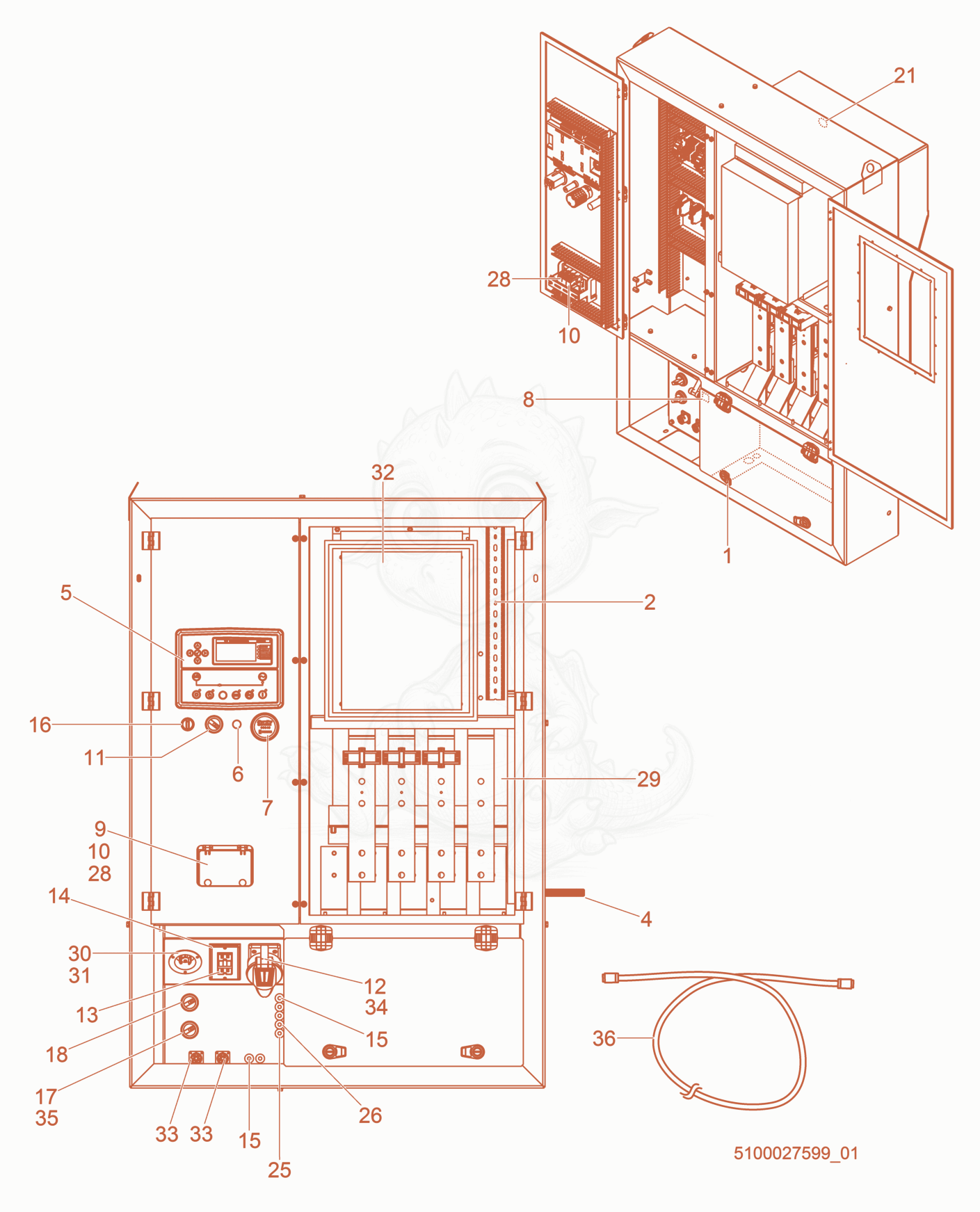

Exploded parts diagram of the Control Panel of a Wacker Neuson G625, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100019092
    $57.48
    Coin operated 1/4 turn door latch - 5100019092×2
  • 25100019258
    $15.93
    Trunking Assembly - 5100019258×1
  • 45100027642
    $76.92
    STUD-M16X150mm BRASS - 5100027642×1
  • 55100019420
    $6,366.45
    Module-Gen Control,Deep Sea,G625 - 5100019420×1
  • 65100027643
    $11.51
    Light-Indicating,Green LED,12V - 5100027643×1
  • 75100027645
    $229.87
    Hour meter-Durite - 5100027645×1
  • 85100019094
    $226.55
    Cable Entry Flap Limit Switch - 5100019094×1
  • 95100027646
    $150.30
    WINDOW - 5100027646×1
  • 105100027649
    $88.41
    Circuit breaker, 15A, Supp. MCB - 5100027649×1
  • 115100027651
    $123.77
    Voltage Changeover Limit Switch - 5100027651×1
  • 125100027652
    $495.09
    RECEPTACLE,50 AMP TWIST LOCK - 5100027652×1
  • 135100027653
    $141.46
    RECEPTACLE, 15A, 125V BLACK GFCI - 5100027653×1
  • 145100027654
    $27.42
    Face Plate, GFCI - 5100027654×1
  • 155100027655
    $13.96
    RECEPTACLE-4mm BANANA PLUG,BLACK - 5100027655×5
  • 165100027656
    $40.66
    SWITCH-2 POSITION SELECTOR - 5100027656×1
  • 175100027657
    $194.50
    Switch, 2 Pole 3 Step Sync - 5100027657×1
  • 185100027658
    $88.41
    Switch, MSC Resistor - 5100027658×1
  • 215100027659
    $42.47
    CABLE GLAND/STRAIN RELIEF - 5100027659×12
  • 255100027660
    $13.96
    RECEPTACLE-4mm BANANA PLUG,GREEN - 5100027660×1
  • 265100027661
    $13.96
    RECEPTACLE-4mm BANANA PLUG,WHITE - 5100027661×1
  • 285100027662
    $54.81
    Circuit breaker, 50A, 2 Pole MCB - 5100027662×1
  • 295100027663
    $114.94
    PLATE - 5100027663×1
  • 305100019273
    $185.66
    30 Amp Twistlock Flanged Inlet - 5100019273×1
  • 315100027871
    $97.25
    WIRING HARNESS - 5100027871×1
  • 325100027665
    $88.41
    COVER - 5100027665×1
  • 335100028222
    $19.46
    CONNECTOR, 5-way - 5100028222×2
  • 345100027727
    $221.03
    COVER-RECEPTACLE, 30A Twistlock - 5100027727×1
  • 355100027870
    $256.40
    LOOM-Synch. Panel, G625 - 5100027870×1
  • 365100027744
    $468.57
    HARNESS-EXTENSION, SET-TO-SET, G625 - 5100027744×1
