G625 Generator, Standard T2

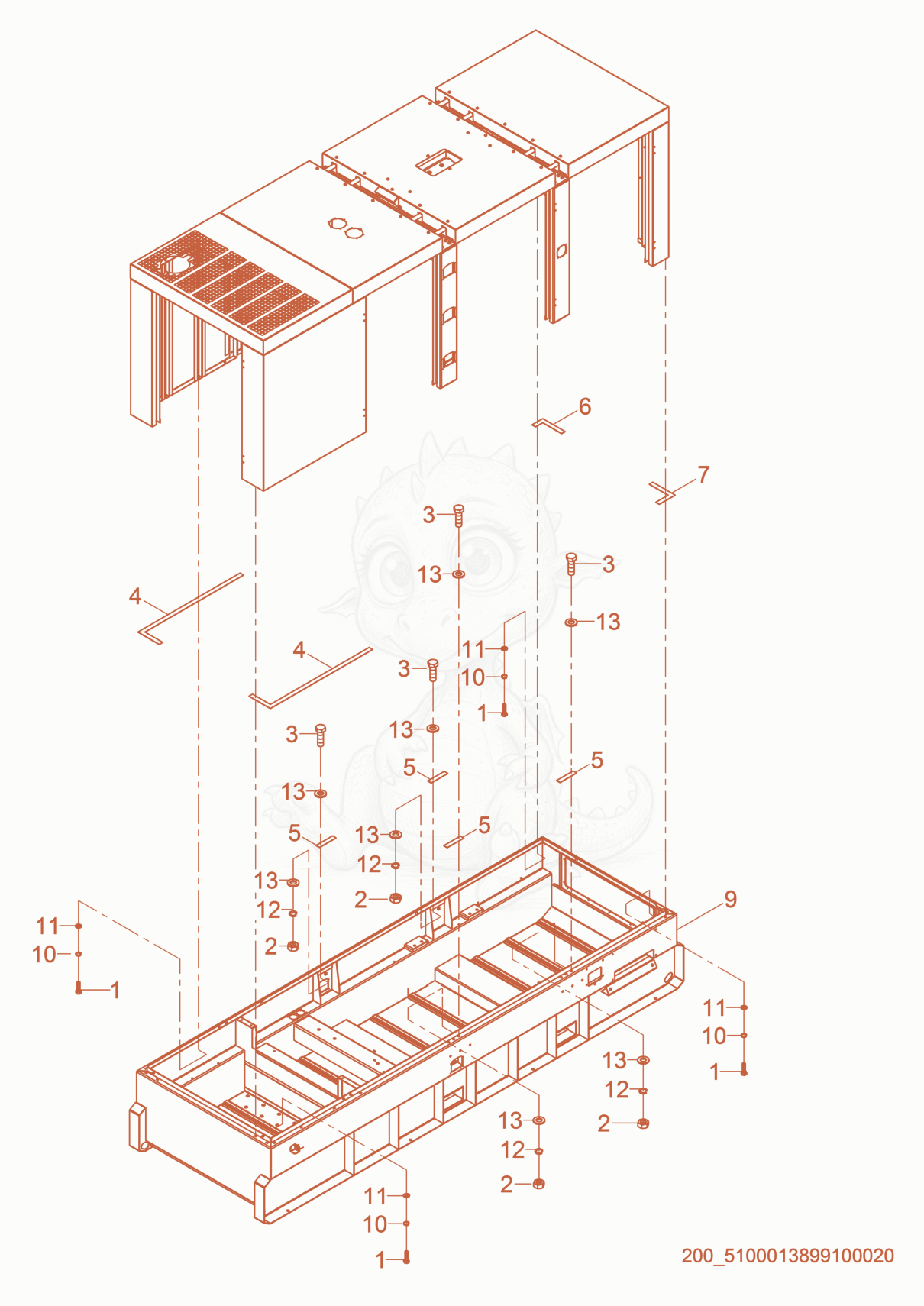

G625 Skid cpl. Diagram

Exploded parts diagram of the Skid cpl. of a Wacker Neuson G625, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×18
  • 25000155244
    $0.68
    NUT M16-8.8 HX HD ZP - 5000155244×12
  • 35000011518
    $1.14
    SCREW M16 X 55 HX.HD. - 5000011518×12
  • 45100019034
    $0.98
    Neoprene Seal 40 x 2 - 5100019034×2
  • 55100019035Not stocked
    Seal×4
  • 65100019036Not stocked
    Seal×1
  • 75100019037Not stocked
    Seal×1
  • 95100019056
    $47,554.67
    BASEFRAME ASSEMBLY - 5100019056×1
  • 105000010704
    $0.44
    WASHER-LOCK 8 - 5000010704×18
  • 115000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×18
  • 125000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×12
  • 135000010618
    $0.28
    WASHER B17 FLAT - 5000010618×12
