G625 Generator, Standard T2

G625 Control Panel Diagram

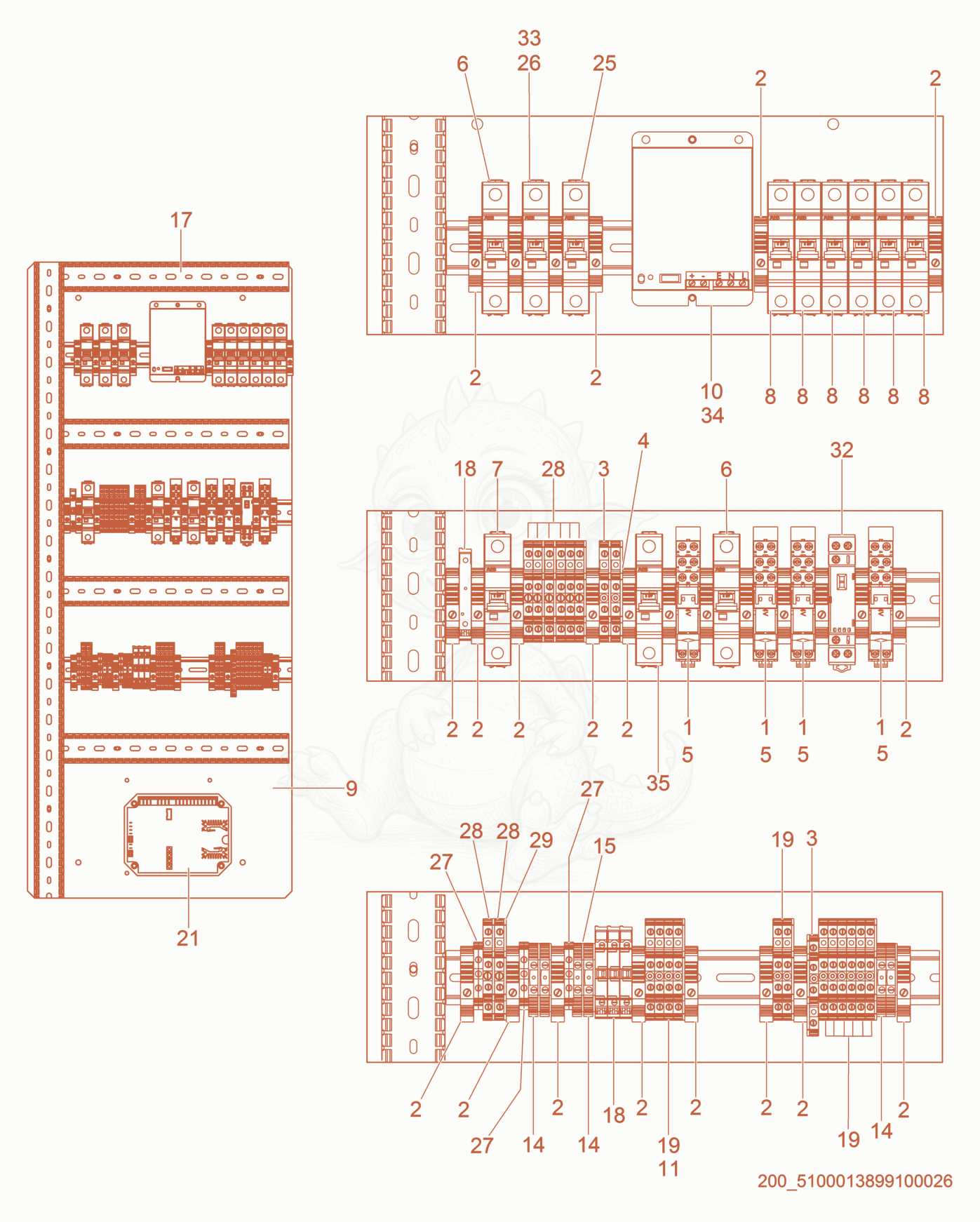

Exploded parts diagram of the Control Panel of a Wacker Neuson G625, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15100019249
$6.43
24 Volt DC Coil Relay - 5100019249×4
25100019250
$1.34
End Stop For Top Hat Din Rail - 5100019250×26
35100019251
$20.35
Diode Terminal - 5100019251×3
45100019252
$3.03
Diode Terminal End Plate - 5100019252×9
55100019253
$15.93
Din Rail Mounted Relay Base - 5100019253×4
65100019254
$62.79
2 Amp ABB UL Approved MCB - 5100019254×2
75100019255
$57.48
10Amp ABB UL Approved MCB - 5100019255×1
85100019257
$106.10
2 Amp UL Approved Supplimentry MCB - 5100019257×6
95100019259
$556.97
CONTROL PANEL BACK PLATE ASSEMBLY - 5100019259×1
105100019267
$313.50
24 Volt Battery Charger - 5100019267×1
115100019261
$2,820.21
DC & AC Monitoring Panel Harness - 5100019261×1
145100019264
$2.41
ER4 4mm Din Rail Terminal - 5100019264×6
155100019265
$1.14
End Plate for ER4 Terminal - 5100019265×5
175100027726
$16.82
Shroud- 40 x 25mm trunking - 5100027726×1
185100028220
$10.62
Fuse holder- JCB - 5100028220×4
195100028221
$13.27
TERMINAL,DinRail, Double Deck, JCB - 5100028221×13
215200025048Not stocked
Voltage regulator×1
255100019268
$106.10
4 Amp ABB Ul Approved Supplementry MCB - 5100019268×1
265100027872
$88.41
20A BREAKER-SUPPLEMENTARY, G625 - 5100027872×1
275100019266
$11.51
4mm Earth Terminal - 5100019266×3
285100019272
$15.05
ERD4V Doubledeck Linked Terminal - 5100019272×2
295100019270
$2.83
EP4 Doubledeck EndPlate - 5100019270×2
325100027695
$114.94
Contactor, 24V - 5100027695×1
335100027873
$274.07
Wiring Harness-Engine heater, G625 - 5100027873×1
345100019269
$176.81
Battery Charger Control Harness - 5100019269×1
355100019256
$62.79
6 Amp ABB UL Approved MCB - 5100019256×1
