G625 Generator, Standard T2

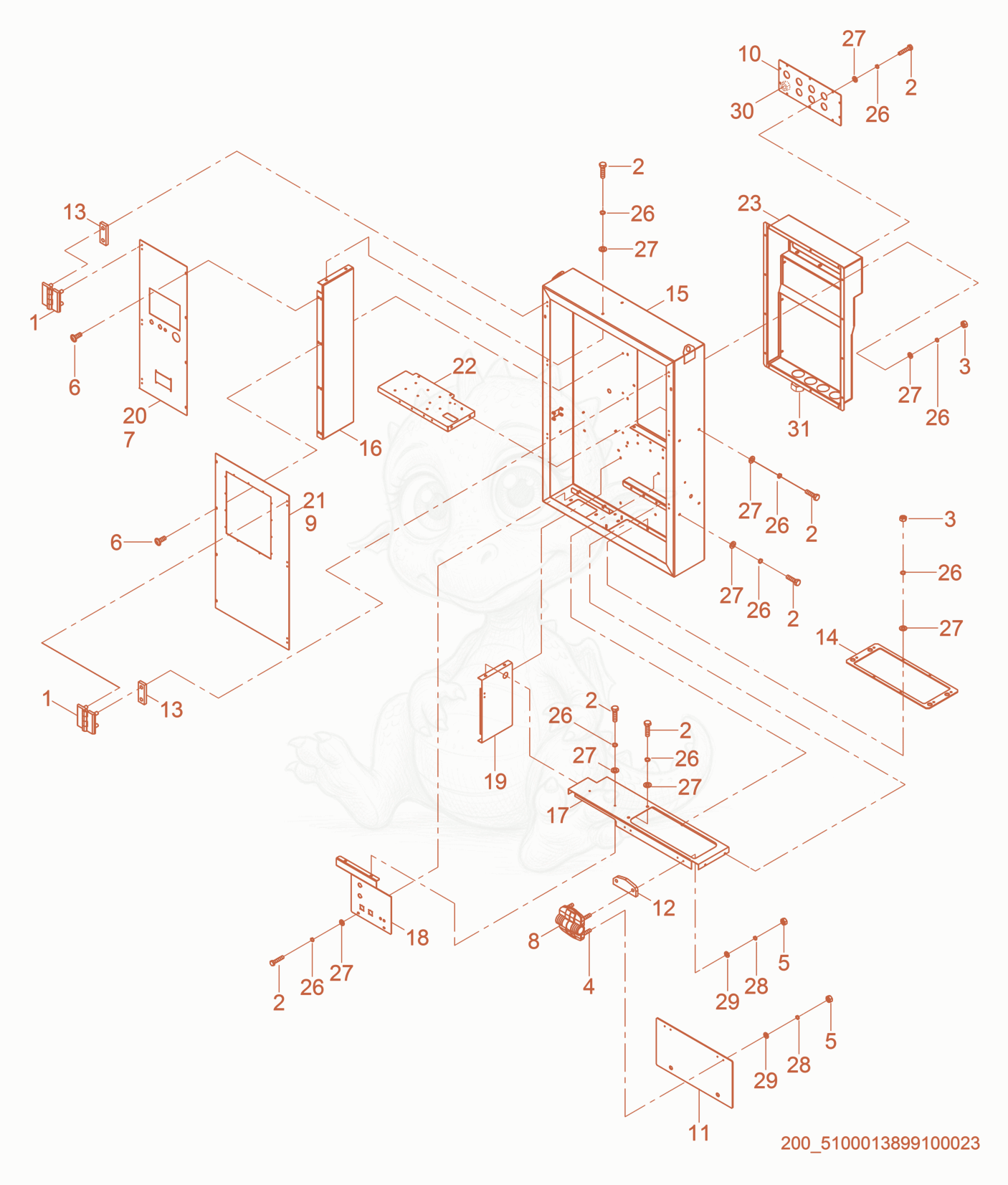

G625 Control Box cpl. Diagram
- DOOR HINGE - 5100019108×6
- SCREW M6 X 20 HX.HD. - 5000011470×39
- 35000173988Not stockedHexagon nut×22
- SCREW M5 X 20 HX.HD. - 5000011475×8
- NUT-HEX,M5 8,ISO4032 - 5000010879×8
- SCREW M6 X 20 SOC.HD. - 5000011551×8
- Hinge-detent - 5100027692×2
- 105100019227Not stockedControl panel×1
- CABLE TERMINAL COVER - 5100019228×1
- RENTAL CP HINGE PLATE - 5100019229×2
- RENTAL CP HINGE PLATE (ALTERNATIVE) - 5100019230×6
- CONTROL PANEL CABLE COVER CLAMP - 5100019231×1
- CONTROL BOX SUB ASSEMBLY - 5100019232×1
- VERTICAL PANEL DIVIDER - 5100019233×1
- HORIZONTAL PANEL DIVIDER - 5100019234×1
- DATA CONNECTION PLATE - 5100019237×1
- SEGRAGATION PLATE - 5100019235×1
- CONTROL PANEL DOOR - 5100019236×1
- BREAKER BOX DOOR - 5100019238×1
- BREAKER SUPPORT ASSEMBLY - 5100019239×1
- 235100019240Not stockedShroud×1
- WASHER-LOCK 6 - 5000010706×39
- WASHER B6.4 FLAT - 5000010624×39
- WASHER-LOCK M5-A2,SS - 5000163383×8
- WASHER B6.4 FLAT - 5000010624×8
- STRAIN RELIEF- 40mm CABLE, G625 - 5100027862×16
- CABLE GLAND/STRAIN RELIEF - 5100027659×4
