G625 Generator, Standard T2

G625 Circuit Breaker cpl. Diagram

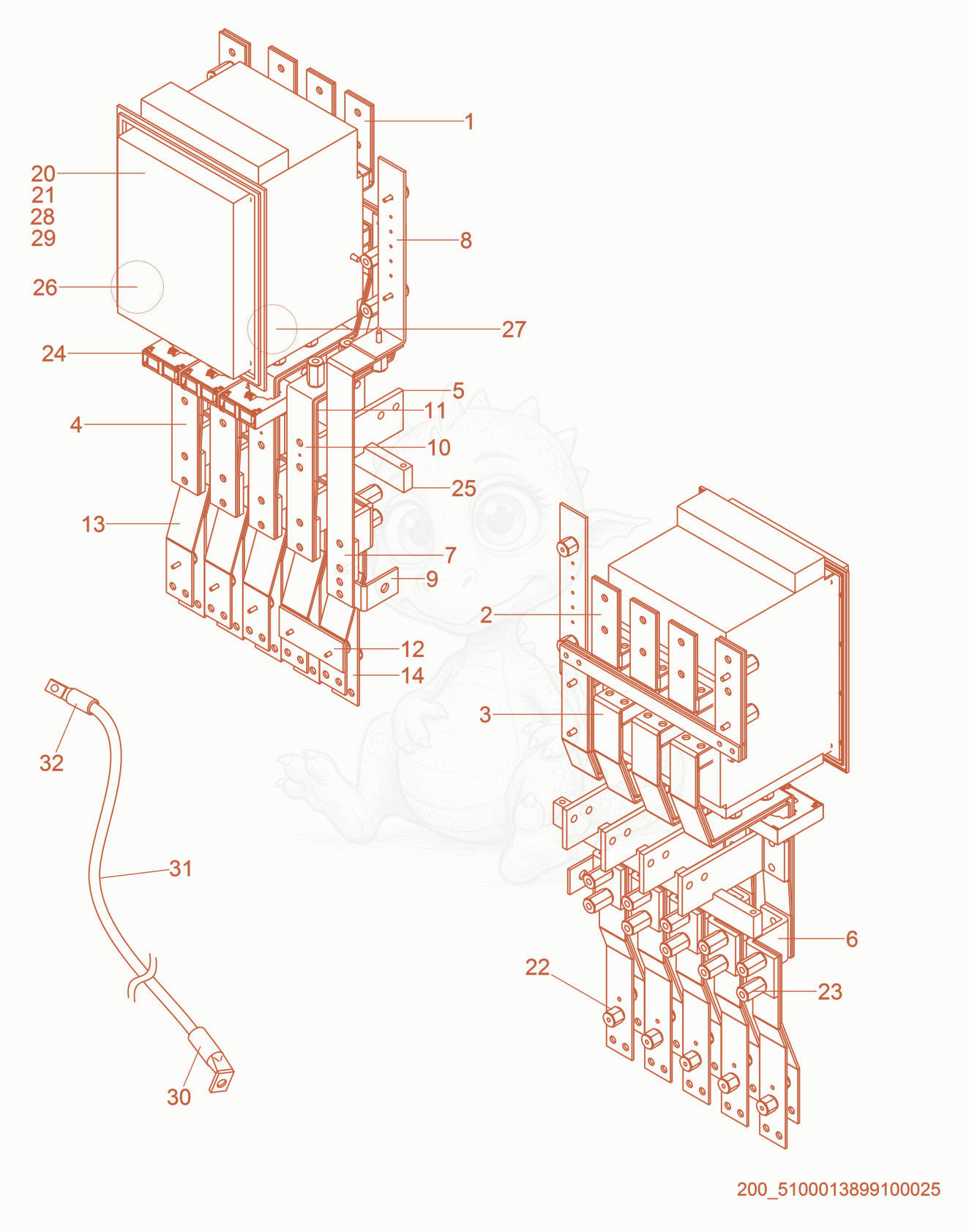

Exploded parts diagram of the Circuit Breaker cpl. of a Wacker Neuson G625, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100027714
    $424.35
    BUS BAR,E2 1600A Incoming,Inner,CKA002 - 5100027714×3
  • 25100027715
    $433.21
    BUS BAR,E2 1600A Incoming,Outer,CKA002 - 5100027715×3
  • 35100027716
    $574.66
    BUS BAR,E2 1600A Outgoing,Outer,(CKA002) - 5100027716×3
  • 45100027717
    $574.66
    BUS BAR,E2 1600A Outgoing,Inner,CKA002 - 5100027717×3
  • 55100027718
    $583.50
    BUS BAR,BCRV550-60 Camlock Output,CKA002 - 5100027718×4
  • 65100027719
    $548.13
    BUS BAR,BCRV550-60 Outgoing, CKA002 - 5100027719×5
  • 75100027804
    $778.00
    BUS BAR,BCRV550-60 GROUND, CKA002 - 5100027804×1
  • 85100027805
    $751.48
    BUS BAR,BCRV550-60 DC GROUND, CKA002 - 5100027805×1
  • 95100027806
    $707.26
    BUS BAR,BCRV550-60 GROUND LINK, CKA002 - 5100027806×1
  • 105100027802
    $857.56
    BUS BAR,BCRV550-60 Outg,N,Outer, CKA002 - 5100027802×1
  • 115100027803
    $892.91
    BUS BAR,BCRV550-60 Outg,N,Inner, CKA002 - 5100027803×1
  • 125100027808
    $477.40
    BUS BAR,BCRV550-60 N,Ground Link, CKA002 - 5100027808×1
  • 135100027801
    $442.04
    BUS BAR,BCRV550-60 ConnectionOut, CKA002 - 5100027801×5
  • 145100027800
    $442.04
    BUS BAR,BCRV550-60 ConnectionInn, CKA002 - 5100027800×5
  • 205100019241
    $10,049.61
    1600Amp E2N ACB Circuit Breaker - 5100019241×1
  • 215100027665
    $88.41
    COVER - 5100027665×1
  • 225100019243
    $13.27
    25mm Insulator M/F Male Stud 20mm Long - 5100019243×10
  • 235100019244
    $17.35
    45mm Insulator M/F Male Stud 28mm Long - 5100019244×23
  • 245100019245
    $78.97
    18 Series CT 1600/5A 5VA - 5100019245×3
  • 255100019246
    $83.12
    Busbar Support Bar 90mm Ctrs - 5100019246×1
  • 265100028152
    $1,519.68
    GEAR MOTOR OPER.- ABB, 24V - 5100028152×8
  • 275100028119
    $332.61
    CLOSING COIL- ABB, 24V - 5100028119×8
  • 285100028153
    $100.49
    ALARM -TRIP, ABB - 5100028153×16
  • 295100028151
    $526.96
    UNDERVOLTAGE RELEASE- ABB, 24V - 5100028151×1
  • 305100019248
    $45.99
    90 Degree Angled Lug -300mm Cable - 5100019248×1
  • 315100019127
    $167.99
    900 mm Cable- Breaker to Alt (300mm²) - 5100019127×1
  • 325100019247
    $32.73
    M12 Cable Lug for 300mm cable - 5100019247×1
