G625 Generator, Standard T2

G625 Sheet Metal Assembly Diagram

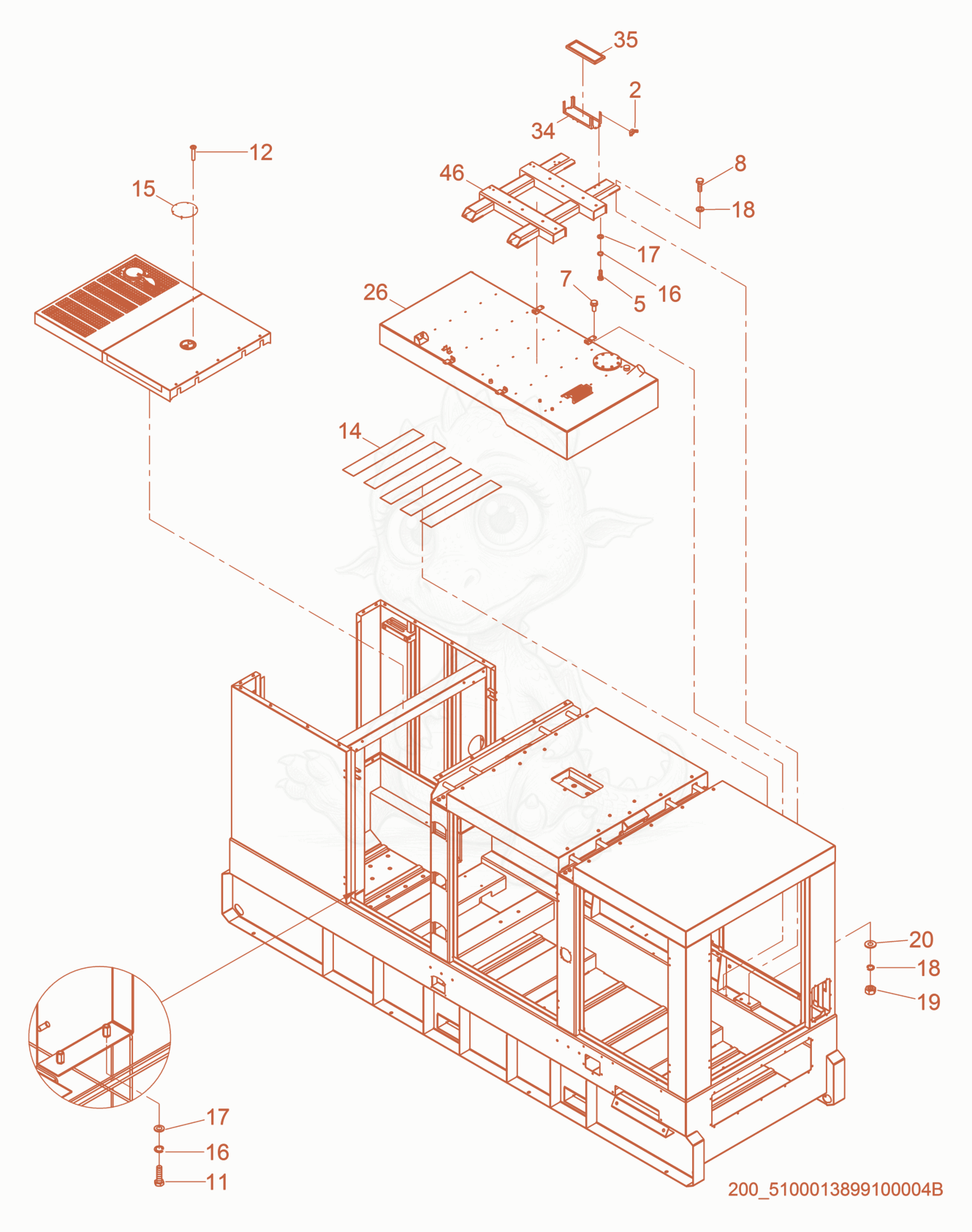

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G625, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25200006435
    $6.93
    NUT-WING M6 - 5200006435×4
  • 55000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×14
  • 75000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×4
  • 85000011438
    $0.58
    SCREW M10 X 35 HX.HD. - 5000011438×8
  • 115000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×4
  • 125000011568
    $0.22
    SCREW M4 X 20 SOC.HD. - 5000011568×6
  • 145100019070
    $14.15
    200mm x 6mm x RUBBER MAT - 5100019070×5
  • 155100019071
    $52.26
    Screw Top Rad Fill (Dummy Cover) - 5100019071×1
  • 165000010704
    $0.44
    WASHER-LOCK 8 - 5000010704×14
  • 175000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×14
  • 185000010644
    $0.04
    WASHER-LOCK B10 - 5000010644×8
  • 195000010883
    $0.29
    NUT M10 8,HEX - 5000010883×4
  • 205000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×4
  • 265100019398
    $9,981.27
    FUEL TANK ASSEMBLY - 5100019398×1
  • 345100019072
    $530.44
    BATTERY TRAY - 5100019072×1
  • 355100019073
    $150.30
    BATTERY CLAMP - 5100019073×1
  • 465100019074
    $2,837.89
    ALTERNATOR SUPPORT ASSEMBLY - 5100019074×1
