MG5sd Por-Gen 110/220V 60Hz NEMA-EN

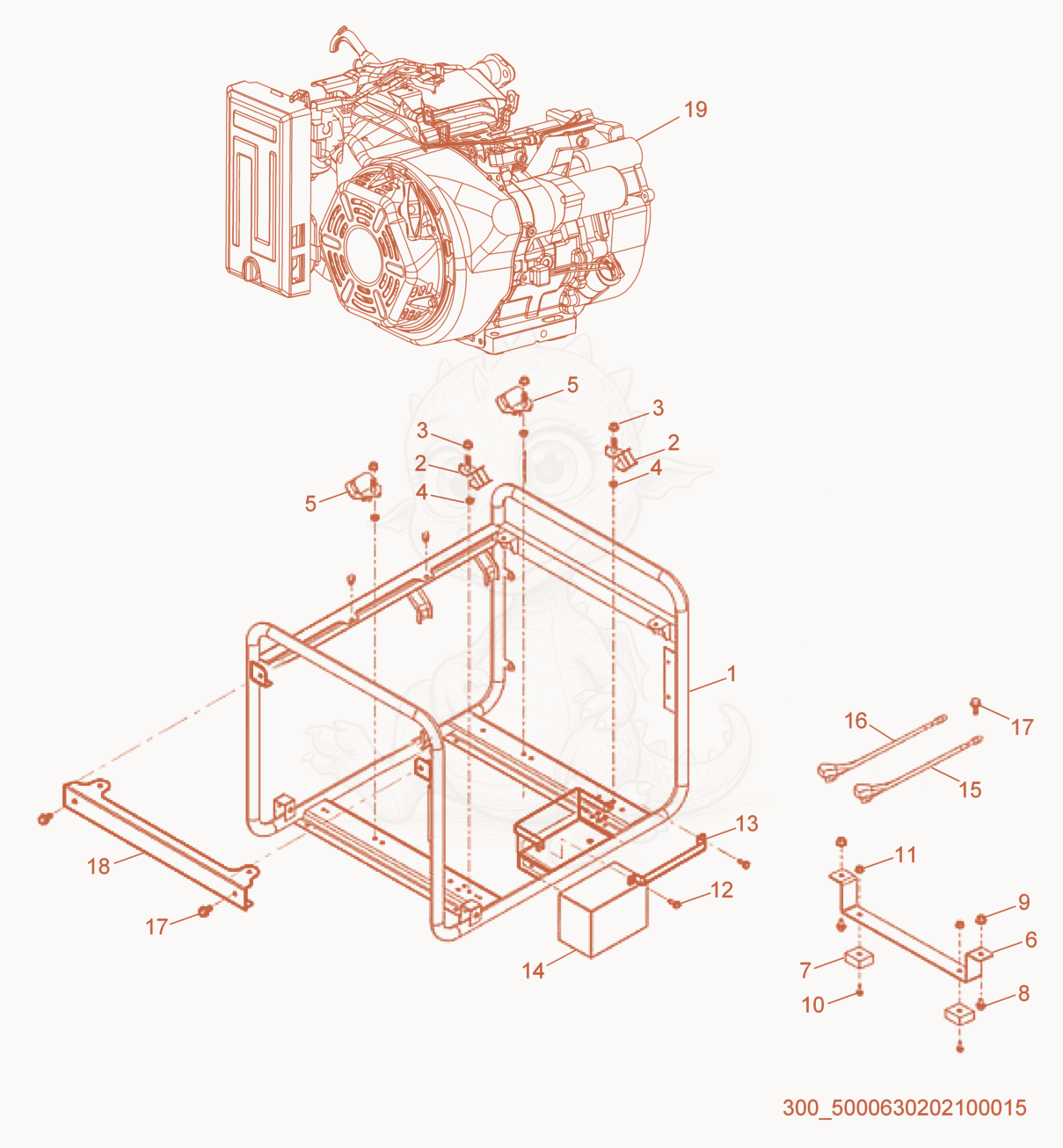

MG5SD Frame cpl. Diagram

Exploded parts diagram of the Frame cpl. of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000407388Not stocked
    Frame cpl.×1
  • 25000404222
    $12.22
    Cushion-Engine Frame - 5000404222×2
  • 35000404223
    $1.47
    Nut - 5000404223×4
  • 45000404061
    $1.17
    Nut - 5000404061×4
  • 55000404224
    $12.43
    Cushion-Engine Frame Rear R-5000405166 - 5000404224×2
  • 65000407389Not stocked
    Support×1
  • 75000407390Not stocked
    Shockmount×2
  • 85000404023
    $1.32
    Bolt - 5000404023×2
  • 95000404056
    $1.32
    Nut - 5000404056×2
  • 105000407391Not stocked
    Bolt×2
  • 115000407392Not stocked
    Nut×2
  • 125000407393Not stocked
    Bolt×2
  • 135000407394Not stocked
    Battery bracket×1
  • 145000407395Not stocked
    Battery×1
  • 155000407396Not stocked
    Wire, Cathode×1
  • 165000407397Not stocked
    Wire, Anode×1
  • 175000404024Not stocked
    Flange bolt×3
  • 185000407398Not stocked
    Cross member, middle×1
  • 195000406889
    $749.30
    Engine-MG5 - 5000406889×1
