MG5sd Por-Gen 110/220V 60Hz NEMA-EN

MG5SD Crankcase Diagram

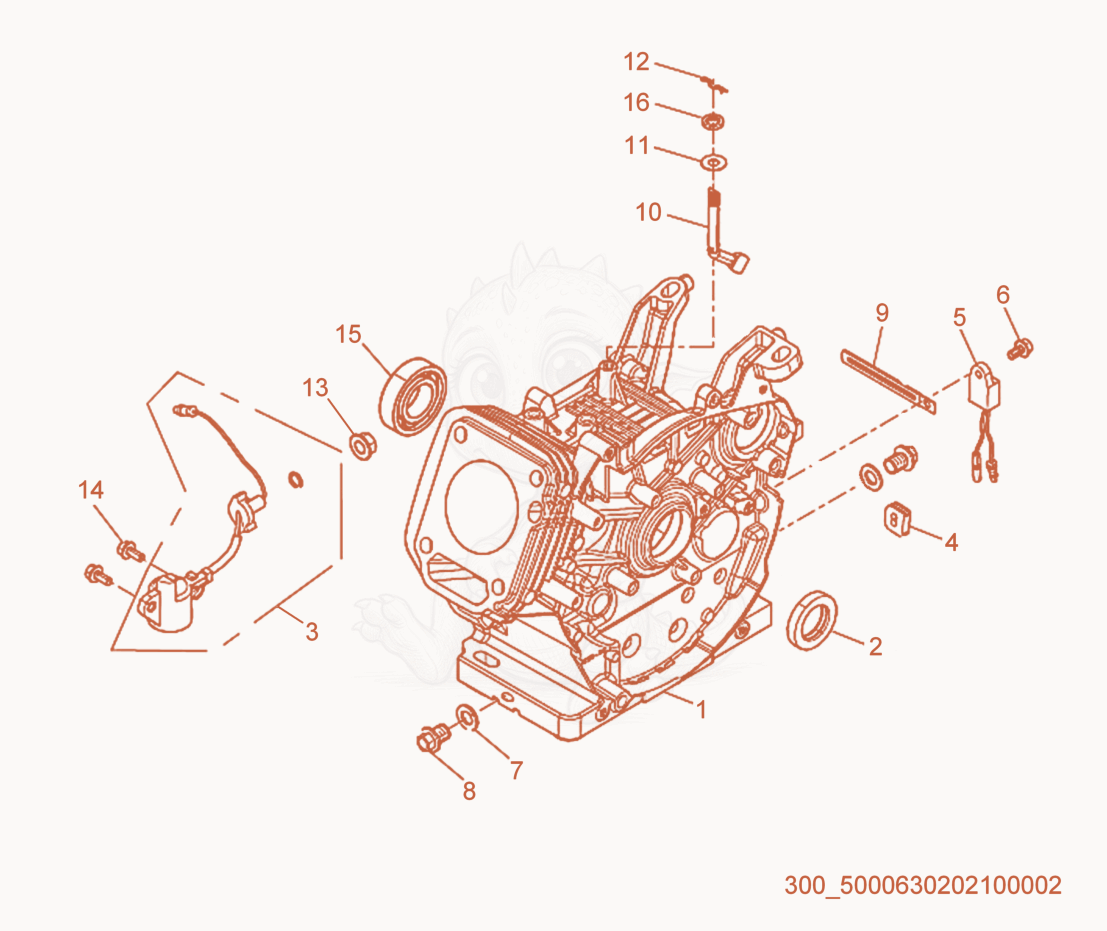

Exploded parts diagram of the Crankcase of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000407377Not stocked
    Crankcase cpl.×1
  • 25000404126Not stocked
    Oil seal×1
  • 35000406767
    $11.37
    Oil Alert - 5000406767×1
  • 45000404128Not stocked
    Plug×1
  • 55000404006
    $8.09
    Protector- Oil R-5000405061 - 5000404006×1
  • 65000404022
    $0.89
    OVER-FAN - 5000404022×1
  • 75000404131Not stocked
    Washer×2
  • 85000404132Not stocked
    Bolt×2
  • 95000404133Not stocked
    Clip×1
  • 105000404134Not stocked
    Governor Lever×1
  • 115000404135Not stocked
    Washer×1
  • 125000403969Not stocked
    Pin×1
  • 135000405169Not stocked
    Nut×1
  • 145000404009Not stocked
    Hexagonal flange head screw×2
  • 155000406825Not stocked
    Bearing×1
  • 165000404139Not stocked
    Oil seal×1
