MG5sd Por-Gen 110/220V 60Hz NEMA-EN

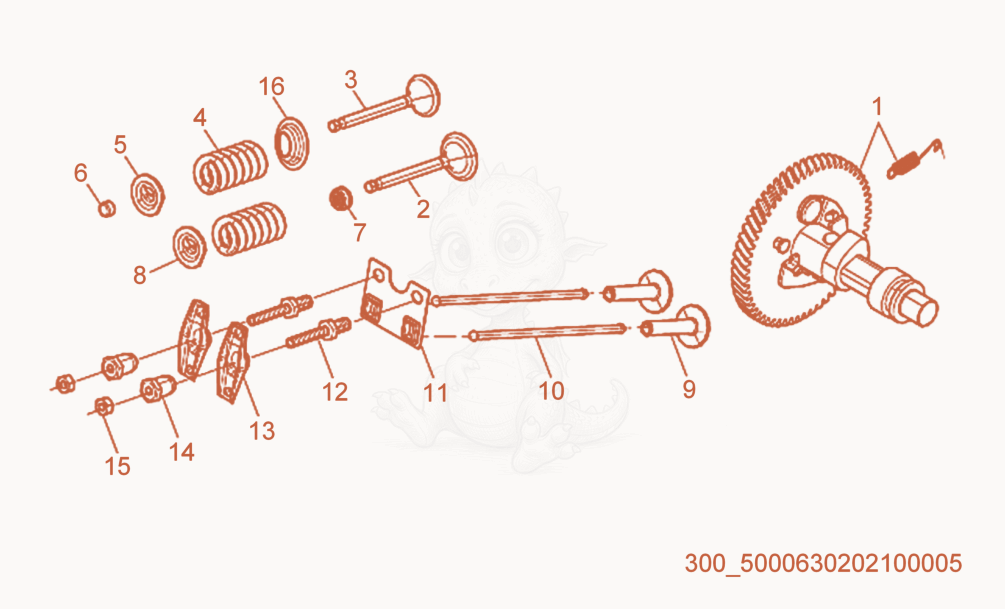

MG5SD Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000404153Not stocked
    Camshaft cpl.×1
  • 25000404154
    $10.56
    Valve-Intake - 5000404154×1
  • 35000404155
    $13.60
    Valve-Exhaust - 5000404155×1
  • 45000404156
    $3.26
    Spring-Valve - 5000404156×2
  • 55000404157
    $5.96
    Retainer-Exhaust Valve - 5000404157×1
  • 65000404158
    $4.68
    Rotator-Valve - 5000404158×1
  • 75000404159
    $13.35
    Guide-Seal - 5000404159×1
  • 85000404160
    $5.96
    Retainer-Valve Spring - 5000404160×1
  • 95000404161
    $15.81
    Lifter-Valve - 5000404161×2
  • 105000404162
    $5.18
    Tappet-Valve - 5000404162×2
  • 115000404163
    $2.28
    Plate Subassembly-Lifter Stopper - 5000404163×1
  • 125000403996
    $4.32
    Bolt- Valve Adjusting - 5000403996×2
  • 135000404165
    $17.61
    Rocker-Valve - 5000404165×2
  • 145000403998
    $4.04
    Nut- Valve Adjusting - 5000403998×2
  • 155000405102
    $1.17
    Nut-Valve Lock - 5000405102×2
  • 165000404168
    $2.68
    Retainer-Valve Spring - 5000404168×1
