MG5sd Por-Gen 110/220V 60Hz NEMA-EN

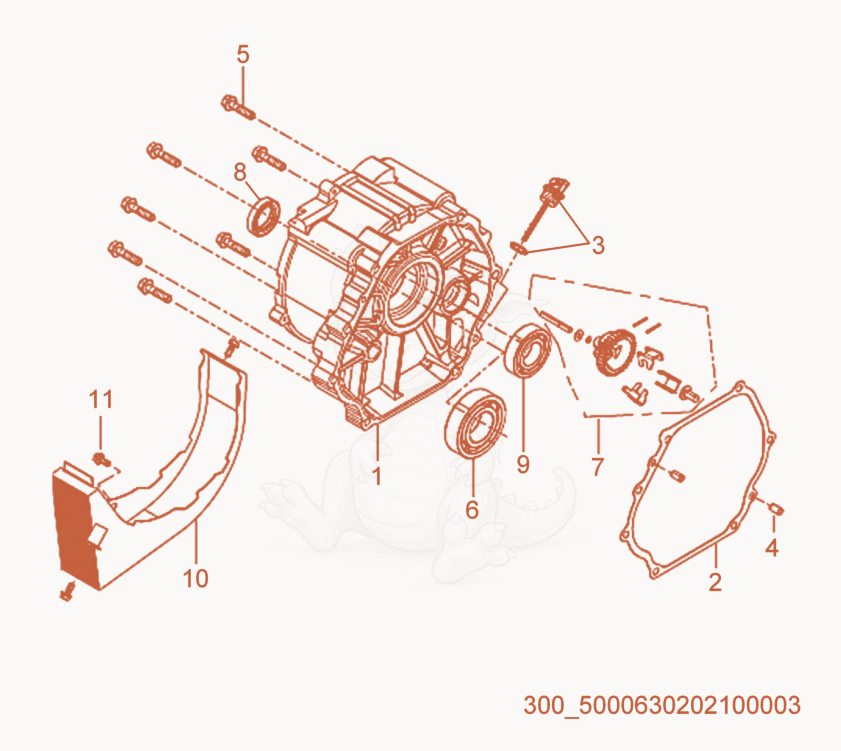

MG5SD Crankcase Cover Diagram

Exploded parts diagram of the Crankcase Cover of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000404140Not stocked
    Cover×1
  • 25000404141
    $21.09
    Gasket-Crankcase - 5000404141×1
  • 35000404142
    $5.46
    Cap Comp-Oil Filler (Yellow) - 5000404142×1
  • 45000403975
    $0.89
    Pin - 5000403975×2
  • 55000404144Not stocked
    Hexagonal flange head screw×7
  • 65000406825Not stocked
    Bearing×1
  • 75000404146
    $23.62
    Gear Assy-Governor - 5000404146×1
  • 85000406823
    $8.76
    Seal Oil R-5000404126 - 5000406823×1
  • 95000406824Not stocked
    Bearing×1
  • 105000404149Not stocked
    Shroud×1
  • 115000407378Not stocked
    Flange bolt×3
