MG5sd Por-Gen 110/220V 60Hz NEMA-EN

MG5SD Throttle Control Diagram

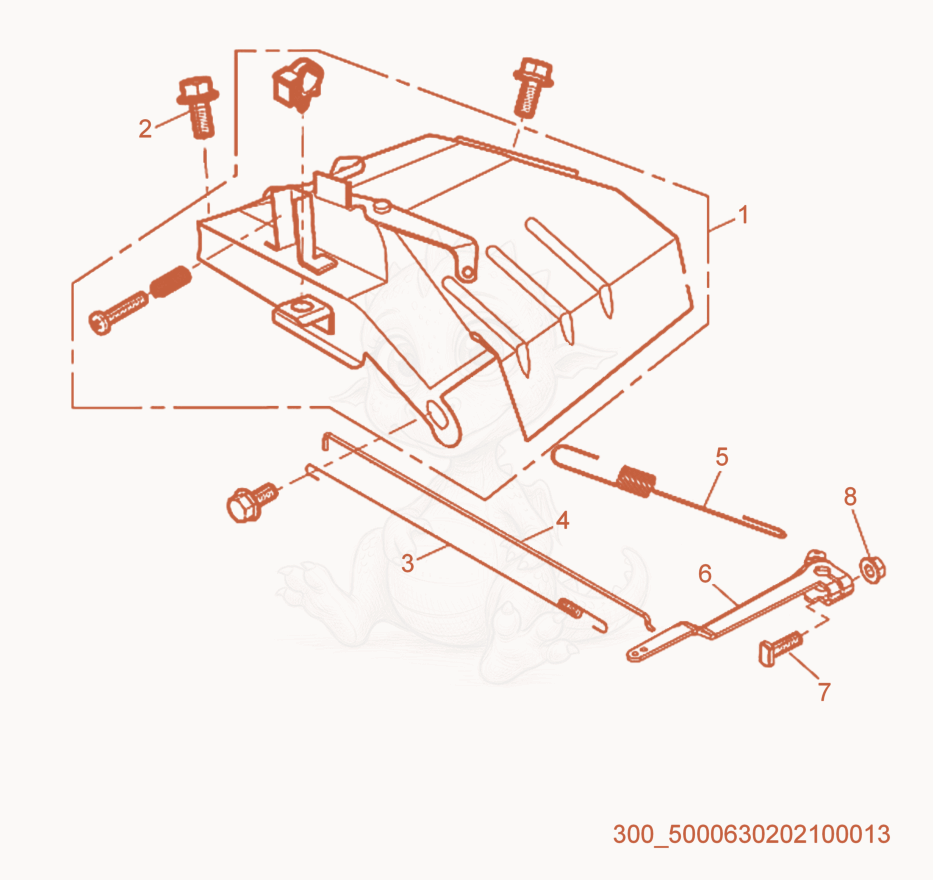

Exploded parts diagram of the Throttle Control of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000406834Not stocked
    Throttle cpl.×1
  • 25000404022
    $0.89
    OVER-FAN - 5000404022×3
  • 35000404214
    $1.03
    Spring-Throttle Valve Returning - 5000404214×1
  • 45000404215Not stocked
    Rod×1
  • 55000406835
    $1.84
    Spring,Govenor - 5000406835×1
  • 65000404217Not stocked
    Support×1
  • 75000404047Not stocked
    Bolt×1
  • 85000404046Not stocked
    Nut×1
