MG5sd Por-Gen 110/220V 60Hz NEMA-EN

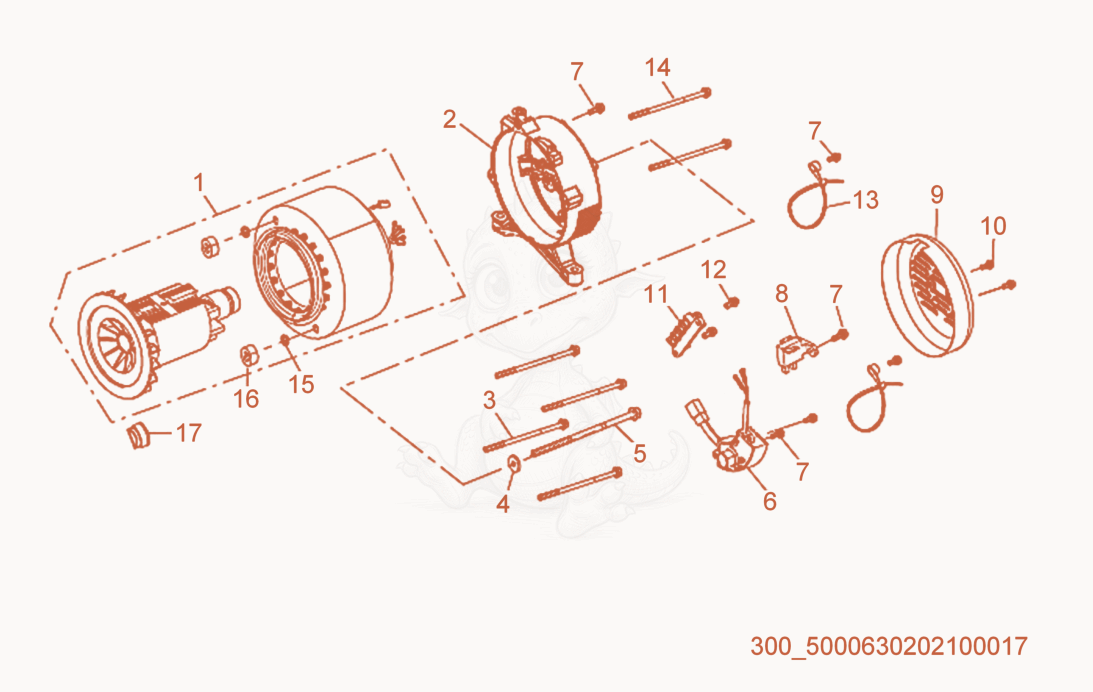

MG5SD Motor cpl. Diagram

Exploded parts diagram of the Motor cpl. of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000407406Not stocked
    Motor cpl.×1
  • 25000407407Not stocked
    Bracket×1
  • 35000404253Not stocked
    Flange bolt×4
  • 45000404254Not stocked
    Washer×1
  • 55000404255Not stocked
    Flange bolt×1
  • 65000404256
    $62.56
    Regulator-Voltage - 5000404256×1
  • 75000404082Not stocked
    Terminal×6
  • 85000404258
    $11.21
    Brush Subassembly-Carbon - 5000404258×1
  • 95000406839Not stocked
    Motor cover×1
  • 105000404093Not stocked
    Flange bolt×2
  • 115000404094
    $5.85
    Block- Terminal - 5000404094×1
  • 125000404263Not stocked
    Flange bolt×2
  • 135000404264Not stocked
    Band clamp×2
  • 145000404266Not stocked
    Flange bolt×2
  • 155000404267Not stocked
    Washer×2
  • 165000404268Not stocked
    Nut×2
  • 175000404270Not stocked
    Stopper×1
