MG5sd Por-Gen 110/220V 60Hz NEMA-EN

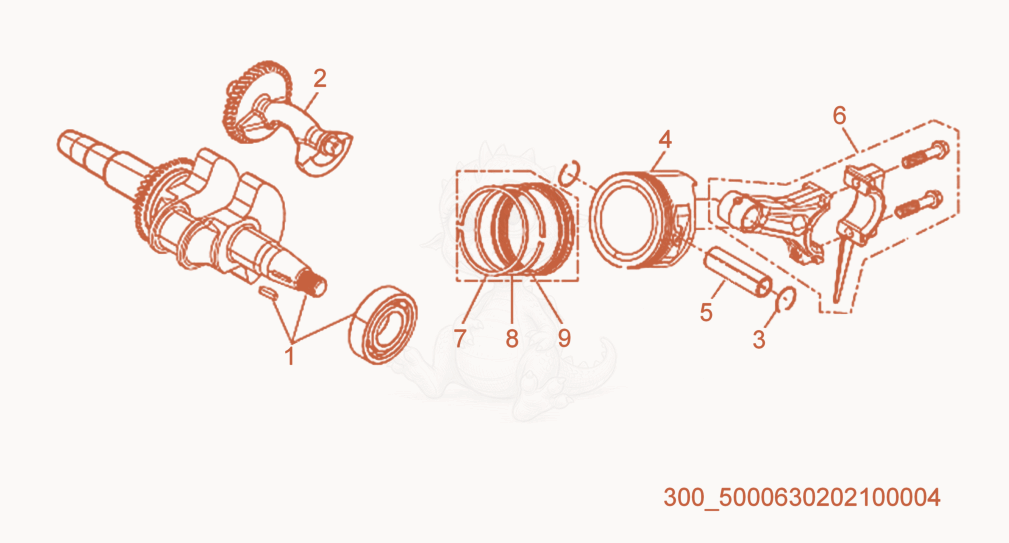

MG5SD Crankshaft/Piston Diagram

Exploded parts diagram of the Crankshaft/Piston of a Wacker Neuson MG5SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000406826Not stocked
    Crankshaft cpl.×1
  • 25000404152
    $27.52
    Weight-Balancer - 5000404152×1
  • 35000404856Not stocked
    Piston pin clip×2
  • 45000406827
    $29.97
    Piston - 5000406827×1
  • 55000404858
    $7.90
    Pin-Piston - 5000404858×1
  • 65000406828
    $25.82
    Rod-Connecting - 5000406828×1
  • 75000404860
    $11.21
    Ring-First - 5000404860×1
  • 85000404861
    $7.84
    Ring-Second - 5000404861×1
  • 95000404862
    $8.87
    Ring Set-Oil - 5000404862×1
