RC110 ROPS

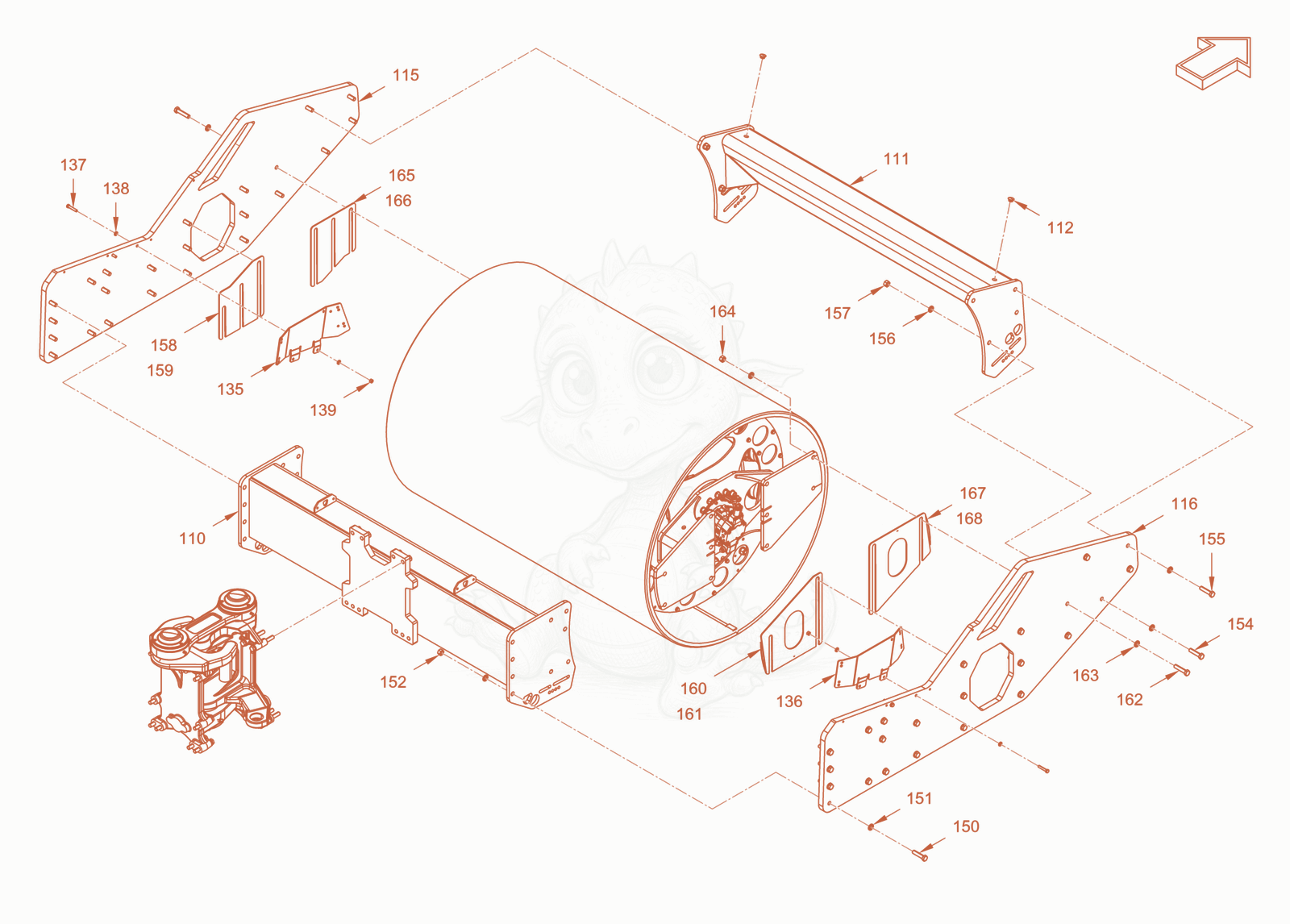

RC110ROPS main frame and assemblies Diagram

Exploded parts diagram of the main frame and assemblies of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1105100074925Not stocked
    traverse×1
  • 1115100075018Not stocked
    traverse×1
  • 1125100078872Not stocked
    filler cap×2
  • 1155100075089Not stocked
    side part×1
  • 1165100075148Not stocked
    side part×1
  • 1355100075180Not stocked
    metal plate×1
  • 1365100074438Not stocked
    metal plate×1
  • 1375100034807
    $2.44
    hexagon screw - 5100034807×4
  • 1385100012968
    $1.57
    Locking washer - 5100012968×8
  • 1395100012548
    $5.41
    Hexagon nut - 5100012548×4
  • 1505100034664Not stocked
    hexagon screw×18
  • 1515100012955
    $8.38
    Locking washer - 5100012955×36
  • 1525100012550
    $2.71
    Hexagon nut - 5100012550×18
  • 1545100034664Not stocked
    hexagon screw×4
  • 1555100034664Not stocked
    hexagon screw×4
  • 1565100012955
    $8.38
    Locking washer - 5100012955×12
  • 1575100012550
    $2.71
    Hexagon nut - 5100012550×4
  • 1585100074458Not stocked
    distance sheet×2
  • 1595100074504Not stocked
    distance sheet×1
  • 1605100074600Not stocked
    distance sheet×2
  • 1615100074669Not stocked
    distance sheet×1
  • 1625100035567
    $11.22
    hexagon screw - 5100035567×20
  • 1635100012955
    $8.38
    Locking washer - 5100012955×40
  • 1645100012550
    $2.71
    Hexagon nut - 5100012550×20
  • 1655100074771Not stocked
    distance sheet×2
  • 1665100074830Not stocked
    distance sheet×1
  • 1675100074900Not stocked
    distance sheet×2
  • 1685100075003Not stocked
    distance sheet×1
