RC110 ROPS

RC110ROPS electrical system Diagram

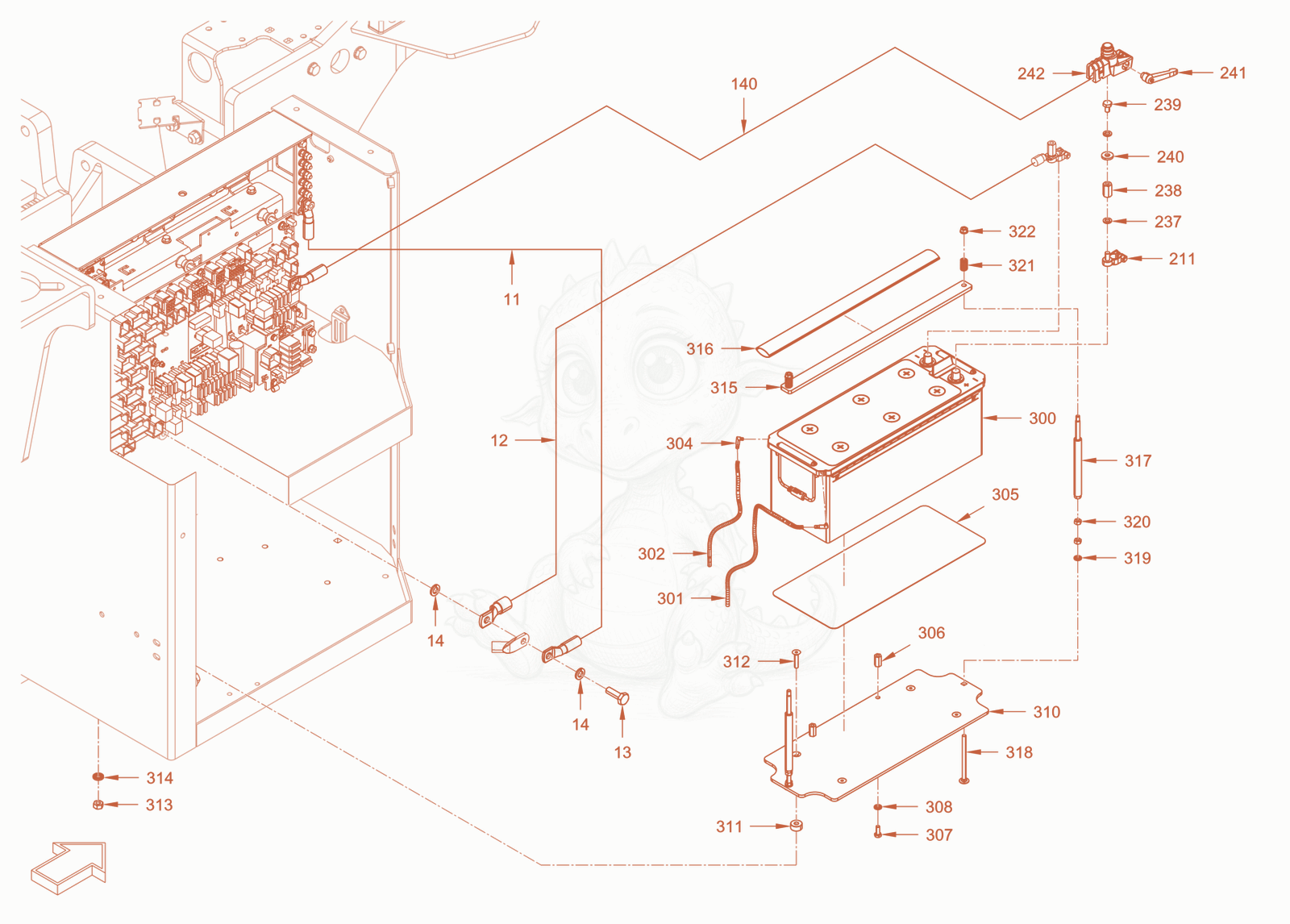

Exploded parts diagram of the electrical system of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 115100074686Not stocked
    ground cable×1
  • 125100074693Not stocked
    battery cable×1
  • 135100046729Not stocked
    hexagon screw×1
  • 145100011918
    $1.57
    Serrated lock washer - 5100011918×2
  • 1405100074704Not stocked
    cable harness×1
  • 2115100022880
    $66.79
    battery terminal positive - 5100022880×1
  • 2375100011918
    $1.57
    Serrated lock washer - 5100011918×2
  • 2385100074765Not stocked
    bolt×1
  • 2395100074788Not stocked
    hexagon screw×1
  • 2405100074794Not stocked
    washer×1
  • 2415100074800Not stocked
    hand lever×1
  • 2425100074805Not stocked
    Cap×1
  • 3005100078952Not stocked
    battery×1
  • 3015100035278Not stocked
    hose×0.3
  • 3025100035278Not stocked
    hose×0.4
  • 3045100074828Not stocked
    angle×2
  • 3055100074834Not stocked
    rubber plate×1
  • 3065100073142Not stocked
    bolt×2
  • 3075100012517
    $1.57
    Hexagon screw - 5100012517×2
  • 3085100012966
    $1.57
    Locking washer - 5100012966×2
  • 3105100074841Not stocked
    metal plate×1
  • 3115100074847Not stocked
    distance bush×4
  • 3125100075109Not stocked
    countersunk screw×4
  • 3135100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 3145100012966
    $1.57
    Locking washer - 5100012966×4
  • 3155100074858Not stocked
    flat steel×1
  • 3165100074863Not stocked
    wire protecting sleeve×1
  • 3175100035282
    $50.33
    rod steel - 5100035282×2
  • 3185100035283
    $4.93
    mushroom head screw - 5100035283×2
  • 3195100012966
    $1.57
    Locking washer - 5100012966×2
  • 3205100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 3215100011819
    $32.93
    Compression spring - 5100011819×2
  • 3225100012534
    $1.57
    Hexagon nut - 5100012534×2
