RC110 ROPS

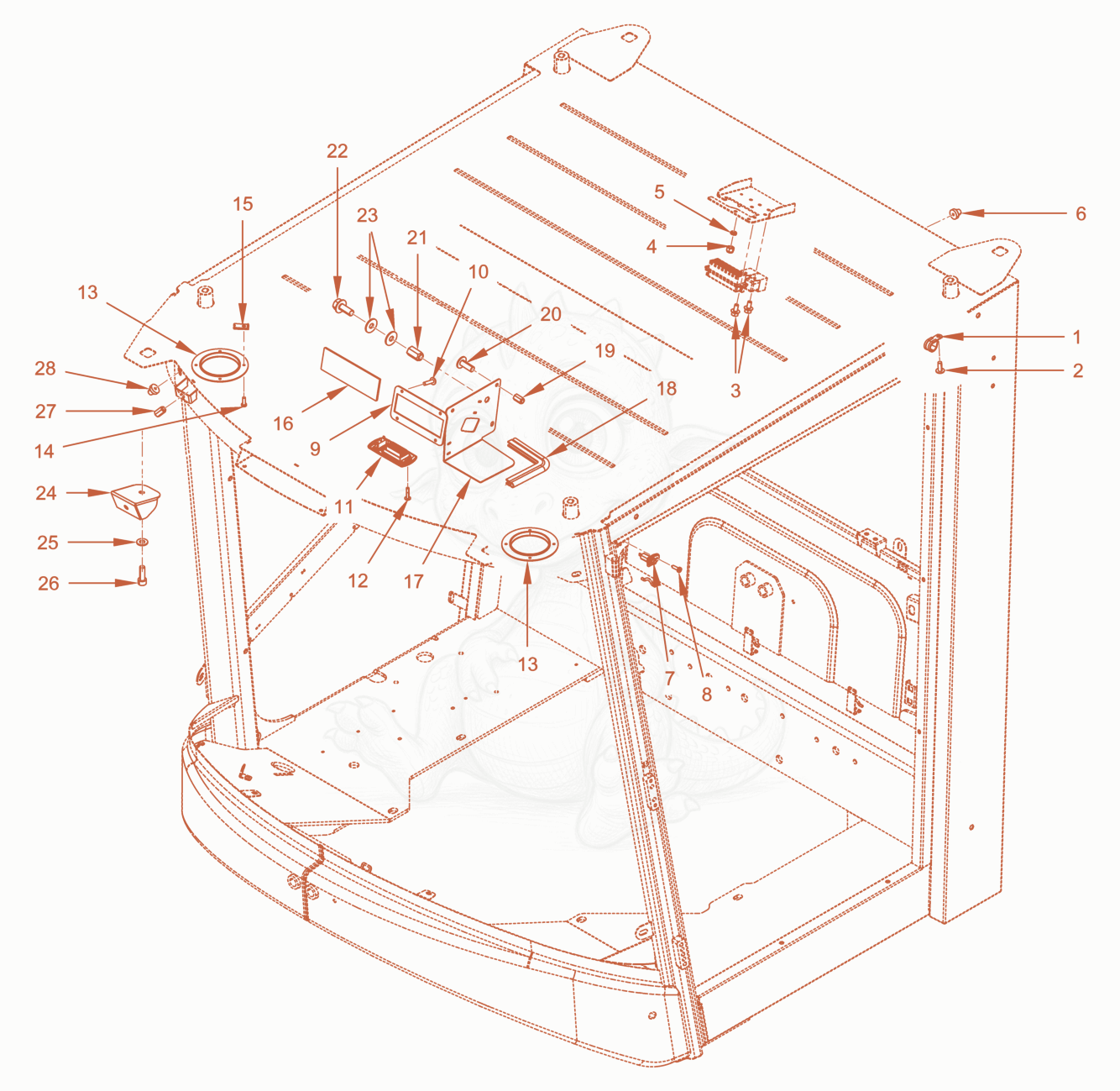

RC110ROPS driver's cabin Diagram

Exploded parts diagram of the driver's cabin of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100046717Not stocked
    cable clamp×1
  • 25100046820Not stocked
    screw×1
  • 35100075171Not stocked
    fillister head screw×4
  • 45100017998
    $1.57
    hexagonal nut - 5100017998×1
  • 55100075173Not stocked
    serrated lock washer×1
  • 65100075176Not stocked
    cable support sleeve×12
  • 75100046537Not stocked
    door contact switch×1
  • 85100075182Not stocked
    screw×1
  • 95100075184Not stocked
    metal plate×1
  • 105100011581
    $1.66
    Fillister head screw - 5100011581×4
  • 115100046658
    $893.45
    flashlight - 5100046658×1
  • 125100075186Not stocked
    fillister head screw×2
  • 135100046713Not stocked
    lid×2
  • 145100075188Not stocked
    sheet metal screw×8
  • 155100075190Not stocked
    clip nut×8
  • 165100046620Not stocked
    cover×1
  • 175100075192Not stocked
    metal plate×1
  • 185100075194Not stocked
    edge protection×1
  • 195100046644Not stocked
    rivet×3
  • 205100046820Not stocked
    screw×3
  • 215100075196Not stocked
    rivet×1
  • 225100075198Not stocked
    hexagon screw×1
  • 235100046760Not stocked
    washer×2
  • 245100074558Not stocked
    holder×4
  • 255100035014
    $1.57
    hexagon screw - 5100035014×4
  • 265100013509
    $1.57
    Washer - 5100013509×4
  • 275100046643
    $2.40
    rivet - 5100046643×1
  • 285100074484Not stocked
    cable support sleeve×2
  • 295100079078Not stocked
    metal plate×1
