RC110 ROPS

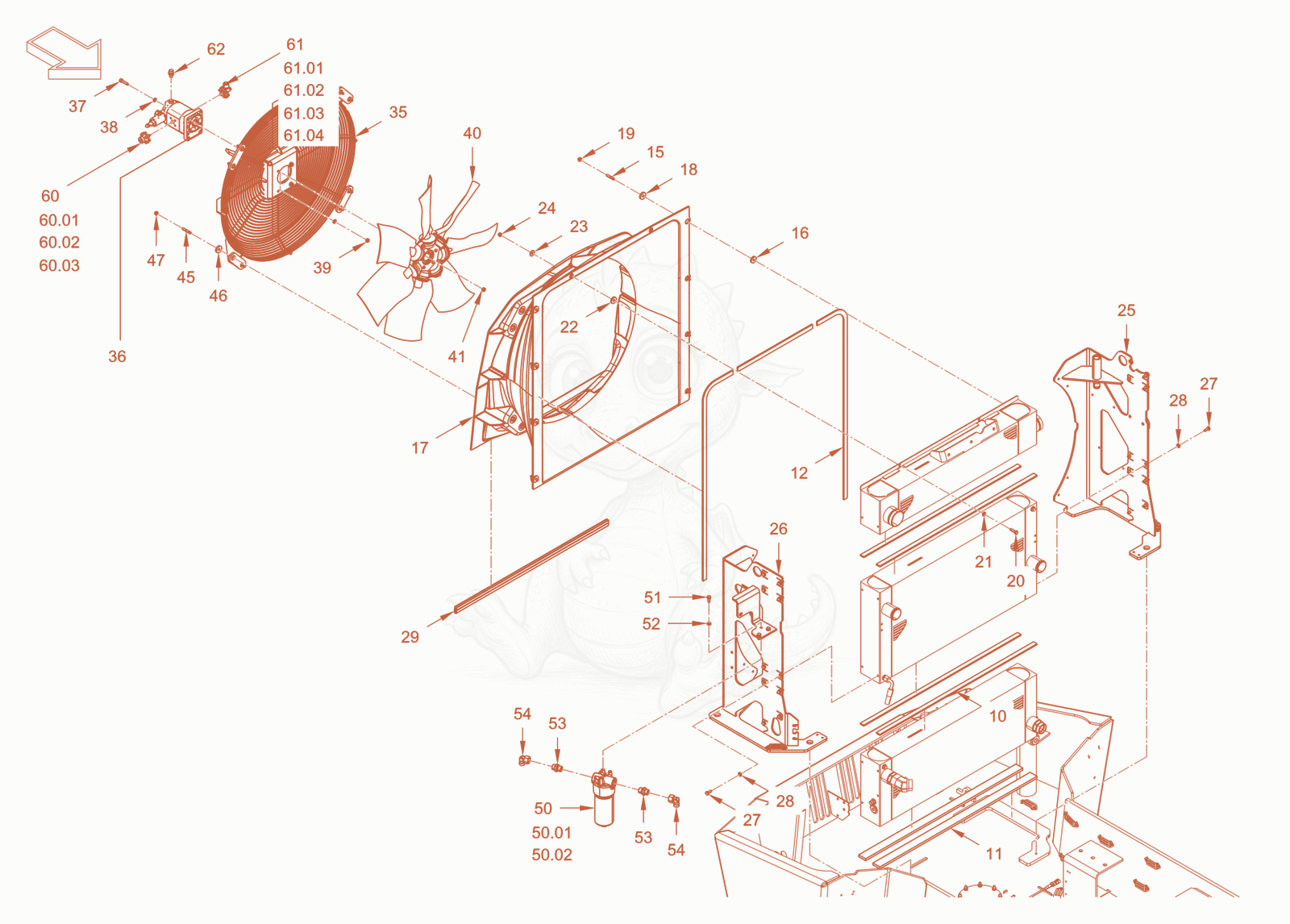

RC110ROPS cooling (engine/hydraulic oil) Diagram

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100011866
    $14.81
    Sealing tape - 5100011866×0.91
  • 105100011866
    $14.81
    Sealing tape - 5100011866×0.91
  • 115100013645
    $17.11
    Rubber profile - 5100013645×0.91
  • 115100013645
    $17.11
    Rubber profile - 5100013645×0.91
  • 125100011866
    $14.81
    Sealing tape - 5100011866×2.81
  • 155100013462
    $8.25
    Stud bolt - 5100013462×8
  • 165100074695Not stocked
    distance piece×8
  • 175100074705Not stocked
    air duct cover×1
  • 185100022953
    $3.68
    washer - 5100022953×8
  • 195100053004
    $1.57
    safety nut - 5100053004×8
  • 205100035308
    $1.57
    hexagon screw - 5100035308×2
  • 215100013257
    $1.57
    Washer - 5100013257×2
  • 225100074695Not stocked
    distance piece×2
  • 235100013421
    $1.57
    Washer - 5100013421×2
  • 245100053004
    $1.57
    safety nut - 5100053004×2
  • 255100074712Not stocked
    holder system×1
  • 265100074722Not stocked
    holder system×1
  • 275100012517
    $1.57
    Hexagon screw - 5100012517×20
  • 285100012966
    $1.57
    Locking washer - 5100012966×20
  • 295100023217
    $31.96
    sealing profile - 5100023217×0.88
  • 355100074730Not stocked
    holder system×1
  • 365100074734Not stocked
    gear motor×1
  • 375100013511
    $1.57
    Cheese-head screw - 5100013511×4
  • 385100012966
    $1.57
    Locking washer - 5100012966×8
  • 395100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 405100074739Not stocked
    fan×1
  • 415100011646
    $4.72
    Hexagon nut - 5100011646×1
  • 455100034727
    $2.84
    stud screw - 5100034727×8
  • 465100022953
    $3.68
    washer - 5100022953×8
  • 475100053004
    $1.57
    safety nut - 5100053004×8
  • 505100039074Not stocked
    Set Of Seals×1
  • 505100063875
    $279.93
    pressure filter - 5100063875×1
  • 505100063876
    $102.44
    filter insert - 5100063876×1
  • 515100012517
    $1.57
    Hexagon screw - 5100012517×3
  • 525100012966
    $1.57
    Locking washer - 5100012966×3
  • 535100012190
    $21.21
    Straight screwed socket - 5100012190×2
  • 545100013483
    $43.21
    Elbow adjustable - 5100013483×2
  • 605100011500
    $3.97
    O-ring seal - 5100011500Unknown×1
  • 605100012723
    $1.57
    Cheese-head screw - 5100012723Unknown×4
  • 605100012942Not stocked
    Spring ring×4
  • 605100074741Not stocked
    straight flange joint×1
  • 615100012216
    $73.16
    Angle flange screwing - 5100012216×1
  • 615100012723
    $1.57
    Cheese-head screw - 5100012723×2
  • 615100012942Not stocked
    Spring ring×4
  • 615100013189
    $1.57
    Cheese-head screw - 5100013189×2
  • 615100013612
    $1.49
    O-ring seal - 5100013612×1
  • 625100074766Not stocked
    straight screwed socket×1
