RC110 ROPS

RC110ROPS cooling (engine/hydraulic oil) Diagram

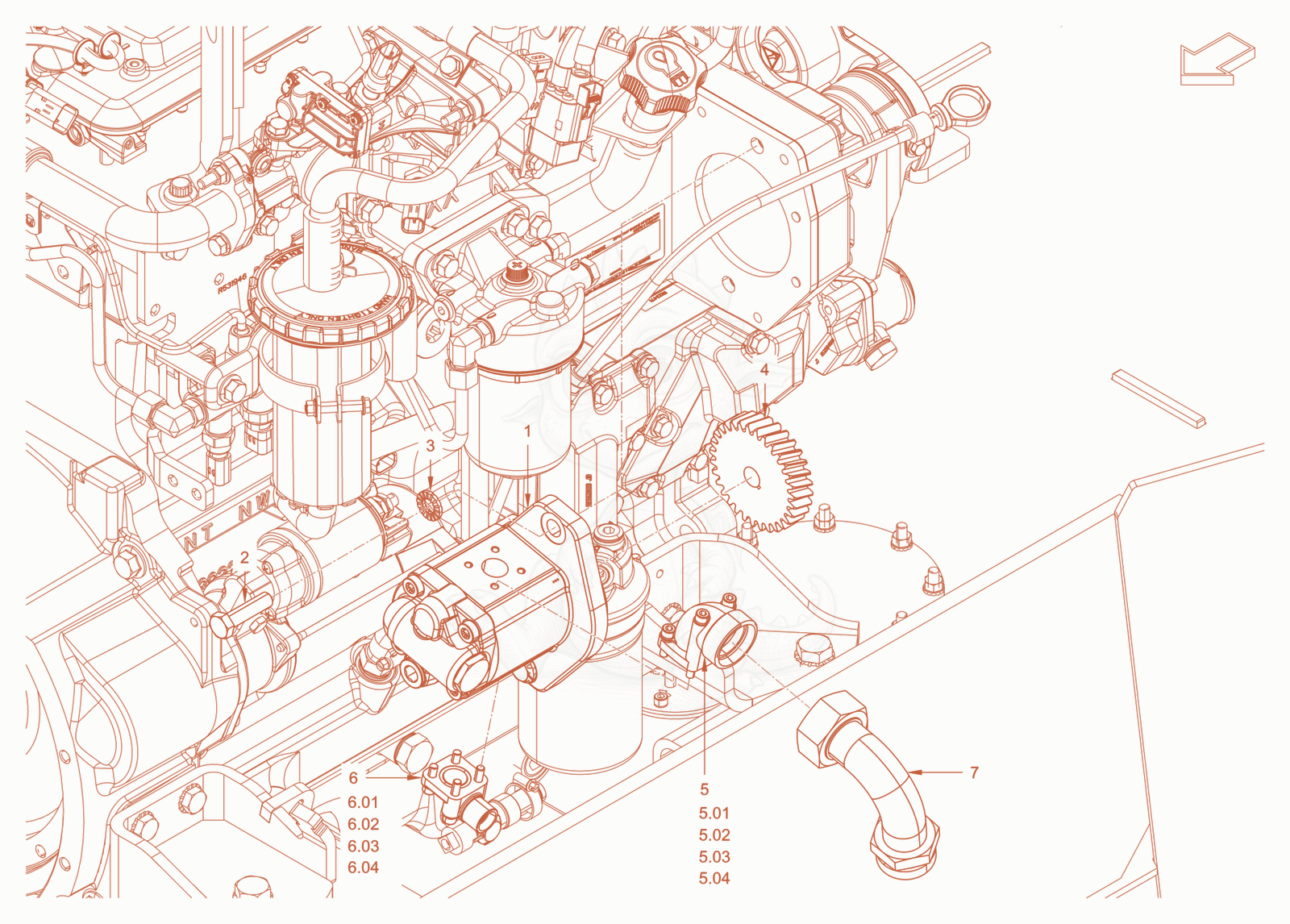

Exploded parts diagram of the cooling (engine/hydraulic oil) of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100074920Not stocked
    gear pump×1
  • 25100011612
    $3.23
    Hexagon screw - 5100011612×2
  • 35100012968
    $1.57
    Locking washer - 5100012968×2
  • 45100078877Not stocked
    toothed wheel×1
  • 55100011500
    $3.97
    O-ring seal - 5100011500Unknown×1
  • 55100012723
    $1.57
    Cheese-head screw - 5100012723Unknown×2
  • 55100012942Not stocked
    Spring ring×4
  • 55100022982
    $1.84
    cheese-head screw - 5100022982Unknown×2
  • 55100074939Not stocked
    angle flange screwing×1
  • 65100012216
    $73.16
    Angle flange screwing - 5100012216×1
  • 65100012723
    $1.57
    Cheese-head screw - 5100012723×2
  • 65100012942Not stocked
    Spring ring×4
  • 65100013189
    $1.57
    Cheese-head screw - 5100013189×2
  • 65100013612
    $1.49
    O-ring seal - 5100013612×1
  • 75100074944Not stocked
    intermediate piece×1
