RC110 ROPS

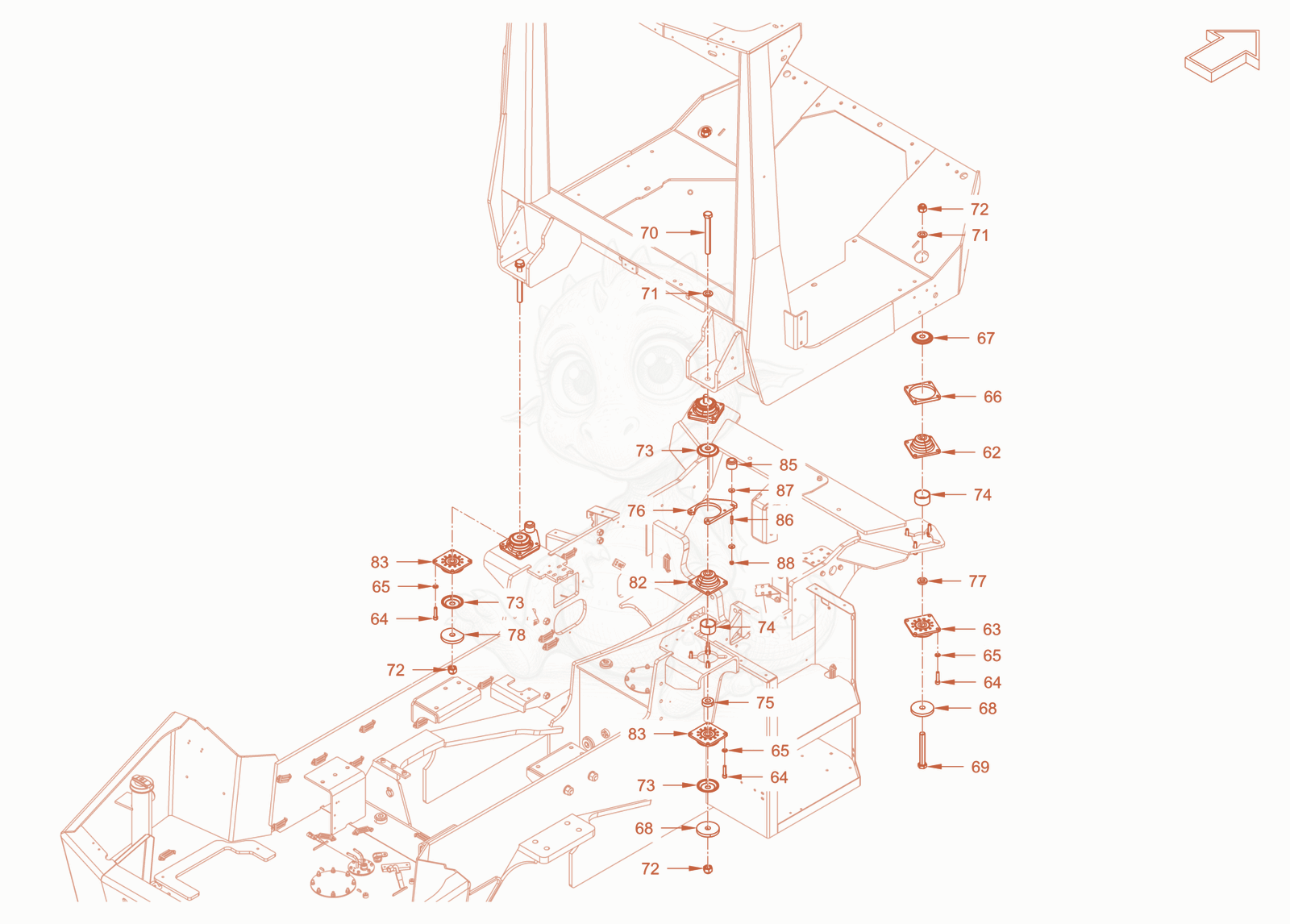

RC110ROPS operator's platform Diagram

Exploded parts diagram of the operator's platform of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 625100078964Not stocked
    rubber metal buffer×2
  • 635100079007Not stocked
    rubber metal buffer×2
  • 645100022994
    $1.57
    cheese-head screw - 5100022994×16
  • 655100012967
    $1.57
    Locking washer - 5100012967×16
  • 665100023163
    $83.64
    metal plate - 5100023163×2
  • 675100023063
    $22.83
    washer - 5100023063×2
  • 685100034765
    $22.37
    washer - 5100034765×3
  • 695100034766
    $19.07
    hexagon screw - 5100034766×2
  • 705100079043Not stocked
    hexagon screw×2
  • 715100034679
    $1.66
    Washer - 5100034679×4
  • 725100022923
    $3.32
    hexagonal nut - 5100022923×4
  • 735100023101
    $25.18
    washer - 5100023101×4
  • 745100079079Not stocked
    ring×4
  • 755100078903Not stocked
    spacer washer×2
  • 765100078920Not stocked
    metal plate×2
  • 775100078955Not stocked
    u-washer×2
  • 785100078994Not stocked
    washer×1
  • 825100078964Not stocked
    rubber metal buffer×2
  • 835100079007Not stocked
    rubber metal buffer×2
  • 855100079027Not stocked
    rubber metal buffer×2
  • 865100011635
    $9.43
    Stud bolt - 5100011635×2
  • 875100013421
    $1.57
    Washer - 5100013421×4
  • 885100053004
    $1.57
    safety nut - 5100053004×2
