RC110 ROPS

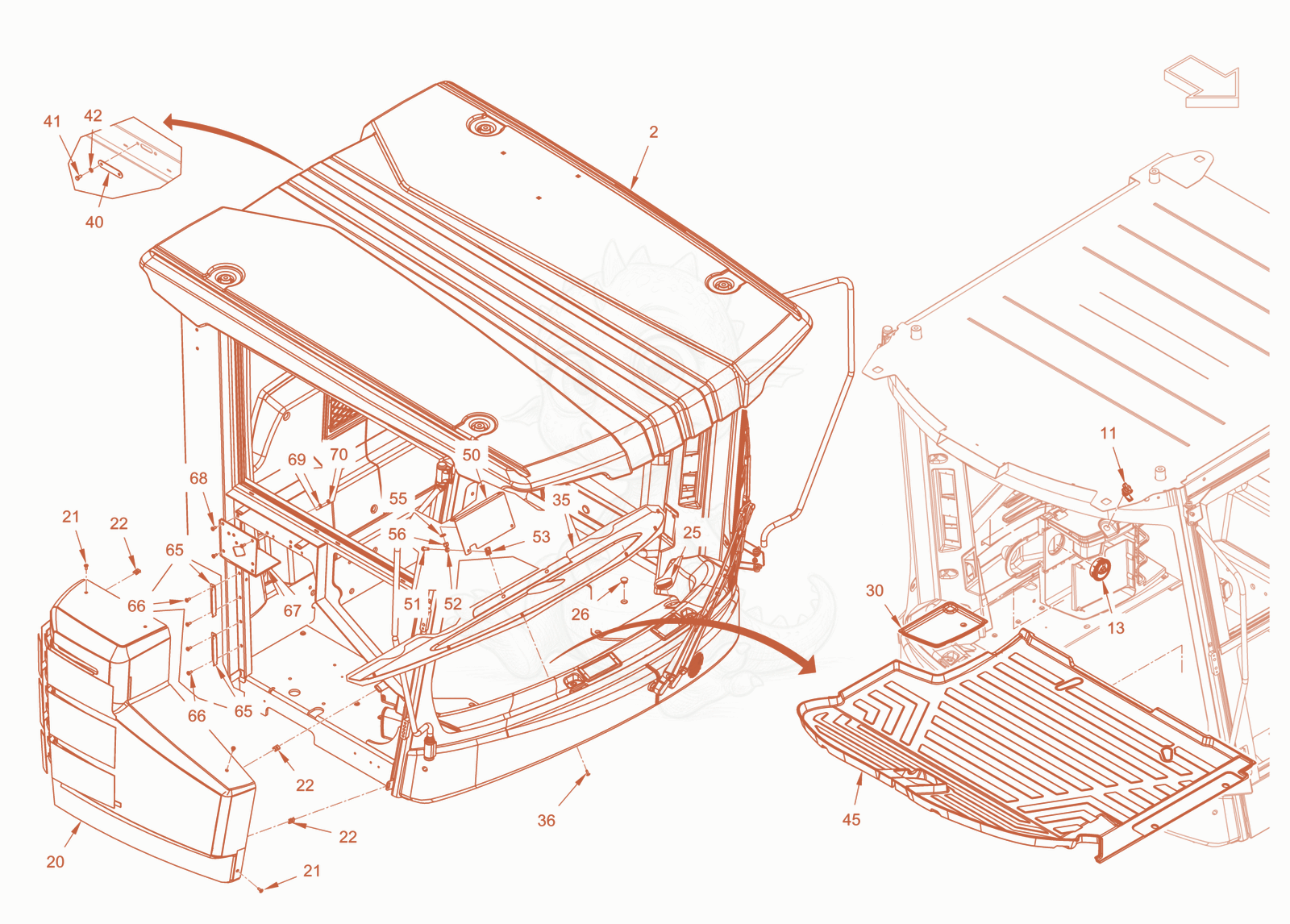

RC110ROPS driver's cabin Diagram

Exploded parts diagram of the driver's cabin of a Wacker Neuson RC110ROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100074916Not stocked
    driver's cabin×1
  • 115100074928Not stocked
    lock×1
  • 135100074932Not stocked
    round nozzle×1
  • 205100074937Not stocked
    cover×1
  • 215100023198
    $0.91
    fillister head screw - 5100023198×5
  • 225100011544
    $6.72
    Clip nut - 5100011544×5
  • 255100074969Not stocked
    filler cap×2
  • 265100046640Not stocked
    filler cap×2
  • 305100074975Not stocked
    rubber piece×1
  • 355100074813Not stocked
    metal plate×1
  • 365100011581
    $1.66
    Fillister head screw - 5100011581×6
  • 405100074980Not stocked
    metal plate×1
  • 415100012515
    $1.49
    Hexagon screw - 5100012515×2
  • 425100012966
    $1.57
    Locking washer - 5100012966×2
  • 455100074985Not stocked
    floor mat×1
  • 505100074990Not stocked
    metal plate×1
  • 515100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 525100012966
    $1.57
    Locking washer - 5100012966×2
  • 535100013584
    $6.37
    Clip nut - 5100013584×2
  • 555100012967
    $1.57
    Locking washer - 5100012967×2
  • 565100063880Not stocked
    safety nut×2
  • 655100075009Not stocked
    metal plate×2
  • 665100023198
    $0.91
    fillister head screw - 5100023198×4
  • 675100075013Not stocked
    metal plate×1
  • 685100023198
    $0.91
    fillister head screw - 5100023198×3
  • 695100012965
    $3.01
    Locking washer - 5100012965×1
  • 705100012545
    $1.57
    Hexagon nut - 5100012545×1
