WN Track dumper TD18

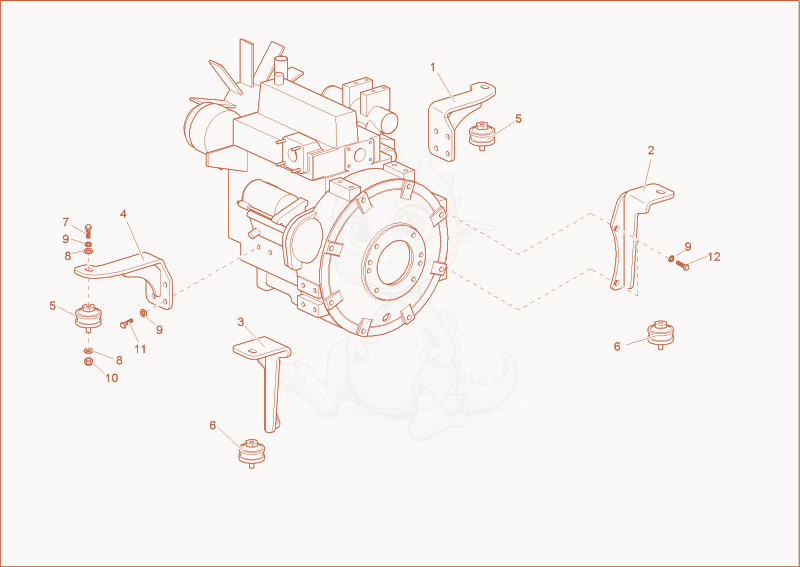

TD18 Engine bedding Diagram

Exploded parts diagram of the Engine bedding of a Wacker Neuson TD18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000061012Not stocked
    engine console×1
  • 21000061010Not stocked
    engine console×1
  • 31000061011Not stocked
    engine console×1
  • 41000061013Not stocked
    engine console×1
  • 51000065012Not stocked
    rubber buffer×2
  • 61000065010Not stocked
    rubber buffer×2
  • 71000015371Not stocked
    hex screw×4
  • 81000015434Not stocked
    washer×8
  • 91000022016Not stocked
    spring washer×16
  • 101000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×4
  • 111000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×8
  • 121000015348Not stocked
    hex screw×4
