WN Track dumper TD18

TD18 swivel console Diagram

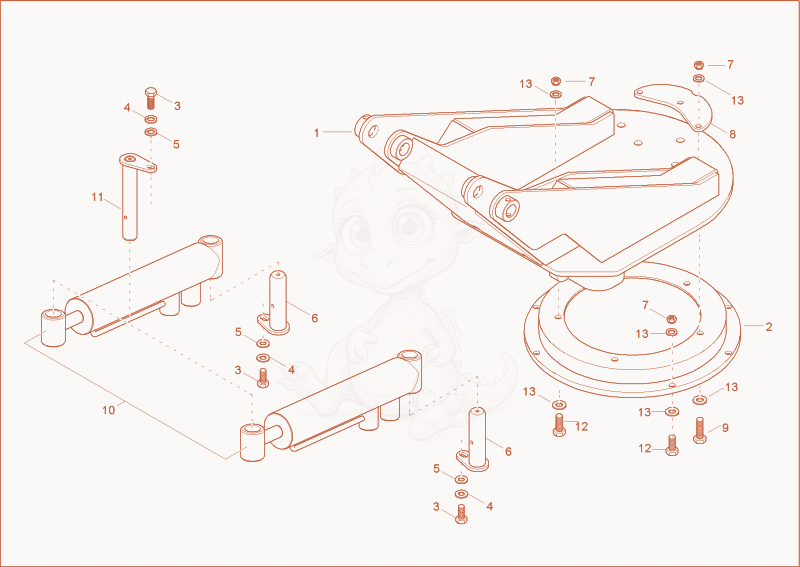

Exploded parts diagram of the swivel console of a Wacker Neuson TD18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000064961Not stocked
    swivel console×1
  • 21000064970Not stocked
    slewing ring×1
  • 31000019136Not stocked
    hex screw×4
  • 41000015437Not stocked
    lock washer×4
  • 51000015431Not stocked
    washer×4
  • 61000142213Not stocked
    pin×2
  • 71000082563
    $0.90
    HEXAGON NUT - 1000082563×13
  • 81000065188Not stocked
    swivel centering×1
  • 91000085441
    $1.48
    6-piont screw M14x50 10.9DacroDIN933 - 1000085441×3
  • 101000065025
    $1,423.46
    boom offset cylinder - 1000065025×2
  • 111000142212Not stocked
    pin×2
  • 121000085440
    $1.68
    DIN933 M12x45 10.9 A2C - 1000085440×10
  • 131000015453Not stocked
    northlock disc×26
