WN Track dumper TD18

TD18 BUCKET Diagram

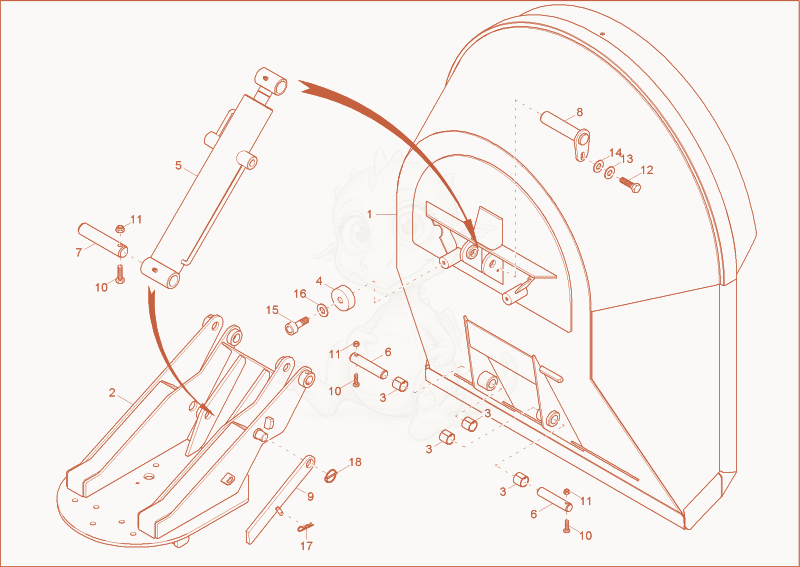

Exploded parts diagram of the BUCKET of a Wacker Neuson TD18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000190409
    $12,198.52
    Powerswivel 1000190409×1
  • 21000064961Not stocked
    swivel console×1
  • 31000083234
    $2.26
    DX BUSHING - 1000083234×4
  • 41000064951Not stocked
    bucket support×2
  • 51000065021Not stocked
    tilt ram×1
  • 61000065135
    $15.73
    PIN - 1000065135×2
  • 71000065136
    $16.23
    pin - 1000065136×1
  • 81000065192Not stocked
    pin tiltram×1
  • 91000065144Not stocked
    maintenance support×1
  • 101000085317
    $0.97
    hex screw M8x55-8.8 A2C-DIN931 - 1000085317×3
  • 111000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 121000019136Not stocked
    hex screw×1
  • 131000015437Not stocked
    lock washer×1
  • 141000015431Not stocked
    washer×1
  • 151000082415
    $2.83
    CHEESE HEAD SCREW - 1000082415×2
  • 161000082609
    $0.73
    lock washer - 1000082609×2
  • 171000082627
    $0.07
    plug - 1000082627×1
  • 181000015457Not stocked
    cotter pin×1
