WN Track dumper TD18

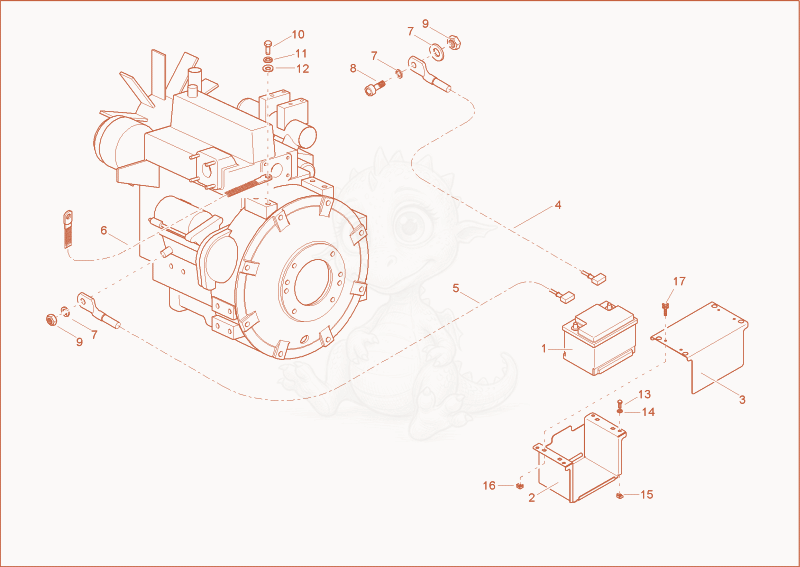

TD18 BATTERY Diagram
- battery - 1000015287×1
- 21000060999Not stockedbattery box×1
- 31000061000Not stockedbattery cover×1
- 41000061009Not stockedminus pole cable×1
- 51000061008Not stockedplus cable×1
- 61000069009Not stockedearth strap×1
- 71000015431Not stockedwasher×3
- 81000022386Not stockedcheese head screw×1
- DIN985-M8-8-A2C - 1000015416×2
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×1
- 111000022016Not stockedspring washer×1
- Washer 10,5 St A2C - 1000092303×1
- allen screw M10x20-8.8 A2C-DIN912 - 1000015354×4
- 141000015438Not stockedlock washer×4
- Korgmutter M10 4,8-6,2 - 1000094959×4
- 161000015425Not stockedcage nut×4
- 171000139409Not stockedstarhandle screw×4
