WN Track dumper TD18

TD18 TRACKLAYING GEAR Diagram

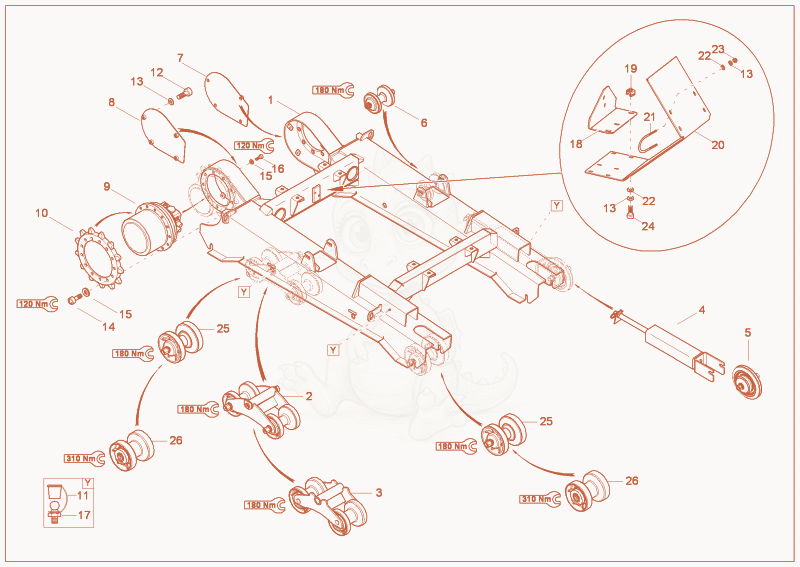

Exploded parts diagram of the TRACKLAYING GEAR of a Wacker Neuson TD18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000142207Not stocked
    undercarriage×1
  • 21000060975Not stocked
    wing×4
  • 31000174529Not stocked
    pre-assembled run rocker×4
  • 41000061049Not stocked
    chain tensioner×2
  • 51000061045Not stocked
    tension roller×2
  • 61000061048Not stocked
    support roller×2
  • 71000061052Not stocked
    cover undercarriage×1
  • 81000061051Not stocked
    cover undercarriage×1
  • 91000061153Not stocked
    drive unit×2
  • 101000060981Not stocked
    drive wheel×2
  • 111000015480Not stocked
    cap grease nipple×6
  • 121000019593Not stocked
    cheese head screw×8
  • 131000082617
    $1.08
    spring washer - 1000082617×15
  • 141000141352Not stocked
    cheese head screw×26
  • 151000022017Not stocked
    spring washer×44
  • 161000085509Not stocked
    cheese head screw×18
  • 171000015475Not stocked
    grease nipple×6
  • 181000142283Not stocked
    fastener angle×1
  • 191000015425Not stocked
    cage nut×3
  • 201000142285Not stocked
    cover plate×1
  • 211000004404Not stocked
    clamp×2
  • 221000015431Not stocked
    washer×7
  • 231000013021Not stocked
    hexagon nut×4
  • 241000019593Not stocked
    cheese head screw×3
  • 251000061046Not stocked
    roller×4
  • 261000174534Not stocked
    roller×4
