WN Track dumper TD18

TD18 seperating plate Diagram

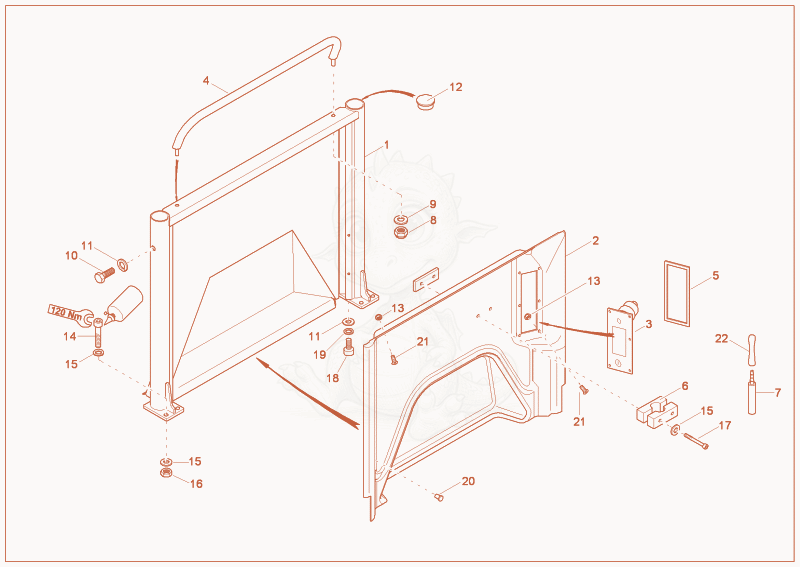

Exploded parts diagram of the seperating plate of a Wacker Neuson TD18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000060990Not stocked
    seperating plate×1
  • 21000060991Not stocked
    trim×1
  • 31000061003Not stocked
    instrument panel×1
  • 41000060992Not stocked
    fasten bow clip×1
  • 51000098196
    $0.67
    seal strap foam 10x15 - 1000098196×1
  • 61000060926Not stocked
    clamp×1
  • 71000175436Not stocked
    key×1
  • 81000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 91000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 101000085400
    $5.90
    hex screw - 1000085400×2
  • 111000021001
    $0.89
    WASHER - 1000021001×2
  • 121000060996Not stocked
    pipe plug×2
  • 131000015420
    $1.32
    NUT - 1000015420×9
  • 141000085512
    $1.18
    allen screw M12x50 10.9 - 1000085512×4
  • 151000082638
    $0.73
    washer 13 -DIN134 - 1000082638×10
  • 161000049013Not stocked
    hexagon nut×4
  • 171000015398Not stocked
    cheese head screw×2
  • 181000015391Not stocked
    cheese head screw×2
  • 191000082633
    $1.69
    spring washer - 1000082633×2
  • 201000074129
    $3.22
    spread rivet - 1000074129×5
  • 211000015358Not stocked
    countersunk screw×9
  • 221000175892Not stocked
    perfored plate×1
