WN Track dumper TD18

TD18 CHASSIS Diagram

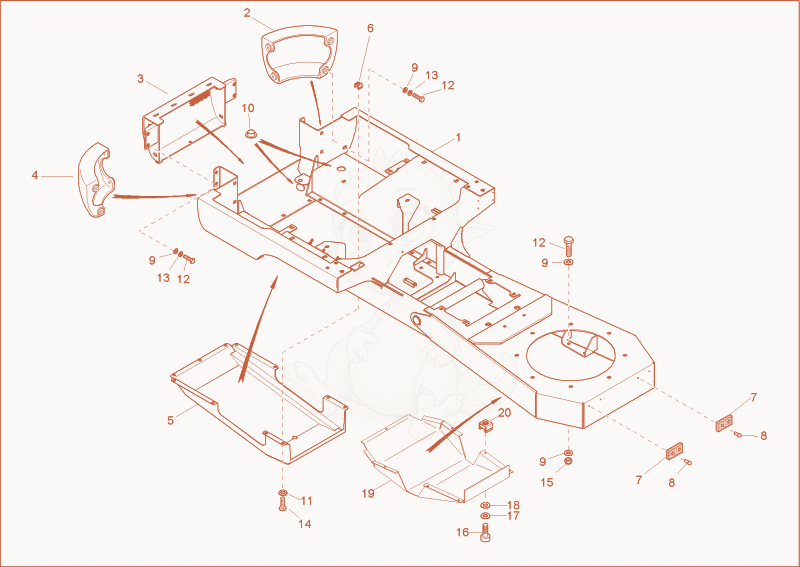

Exploded parts diagram of the CHASSIS of a Wacker Neuson TD18, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000142295Not stocked
    chassis×1
  • 21000064946Not stocked
    cast iron edge×1
  • 31000060945Not stocked
    rear plate×1
  • 41000064947
    $769.88
    Castironedge 1000064947×1
  • 51000061041Not stocked
    cover×1
  • 61000094959
    $1.13
    Korgmutter M10 4,8-6,2 - 1000094959×11
  • 71000002903
    $11.15
    REFLECTOR - 1000002903×2
  • 81000082697
    $0.80
    blind rivet A3x12 - 1000082697×4
  • 91000082638
    $0.73
    washer 13 -DIN134 - 1000082638×28
  • 101000060911Not stocked
    plug×4
  • 111000015434Not stocked
    washer×11
  • 121000015347Not stocked
    hex screw×20
  • 131000022017Not stocked
    spring washer×12
  • 141000015354
    $0.82
    allen screw M10x20-8.8 A2C-DIN912 - 1000015354×11
  • 151000020127Not stocked
    hexagon nut×8
  • 161000019593Not stocked
    cheese head screw×7
  • 171000082617
    $1.08
    spring washer - 1000082617×7
  • 181000015431Not stocked
    washer×7
  • 191000142296Not stocked
    cover×1
  • 201000015425Not stocked
    cage nut×7
