WL250

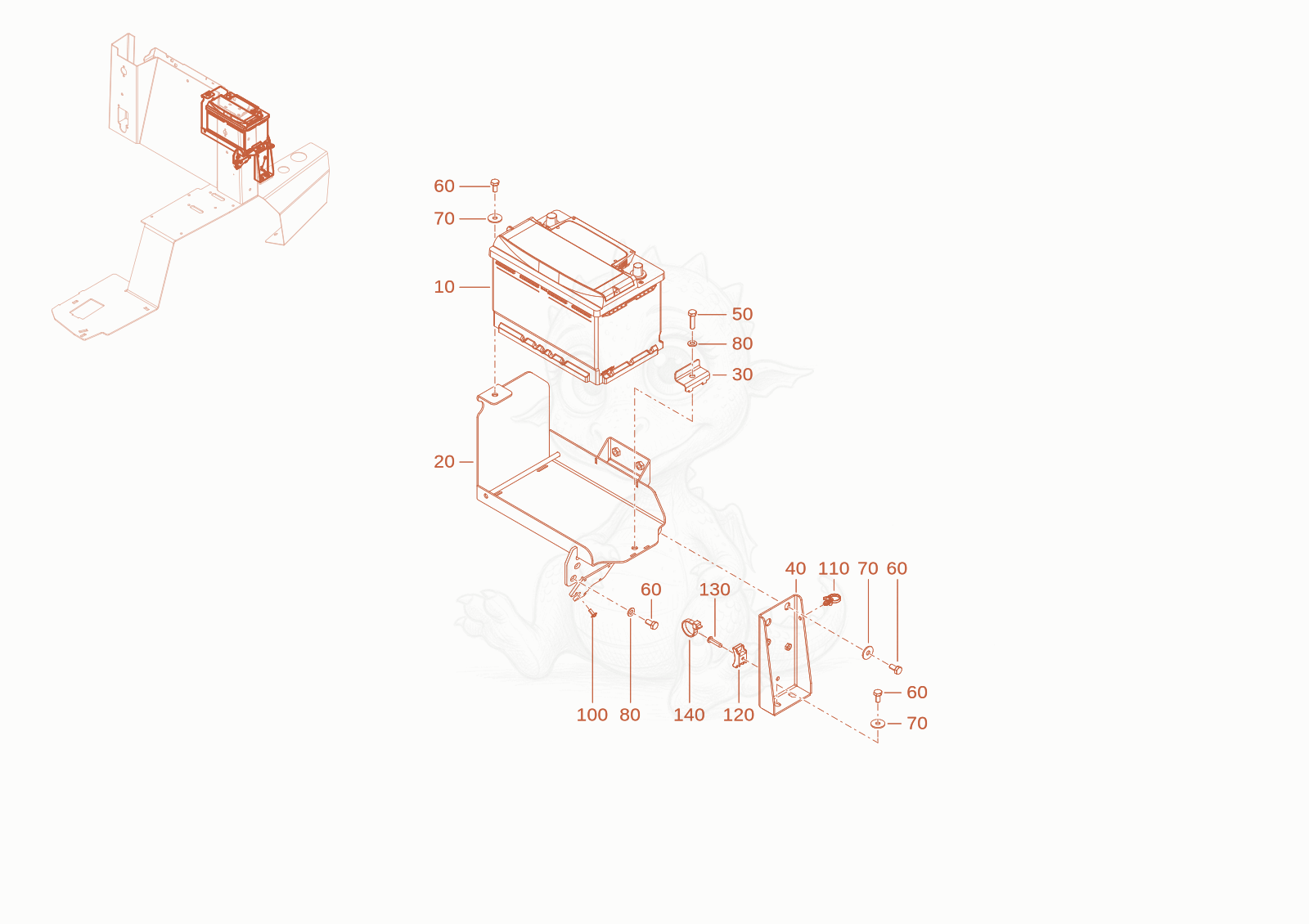

WL250(A02-01) battery Diagram

Exploded parts diagram of the battery of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000208090Not stocked
    starter battery×1
  • 201000480821Not stocked
    bracket battery×1
  • 301000460724
    $23.36
    bracket - 1000460724×1
  • 401000531499
    $78.88
    bracket - 1000531499×1
  • 501000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 601000019136Not stocked
    hex screw×7
  • 701000013027Not stocked
    washer×5
  • 801000015431Not stocked
    washer×3
  • 1001000335809
    $1.22
    SCREW - 1000335809×4
  • 1101000375997Not stocked
    fixing bracket×1
  • 1201000282739
    $2.12
    sockets - 1000282739×1
  • 1301000356352
    $2.30
    Rivet - 1000356352×1
  • 1401000193759
    $0.36
    cable strap - 1000193759×1
