WL250

WL250(A02-01) socket Diagram

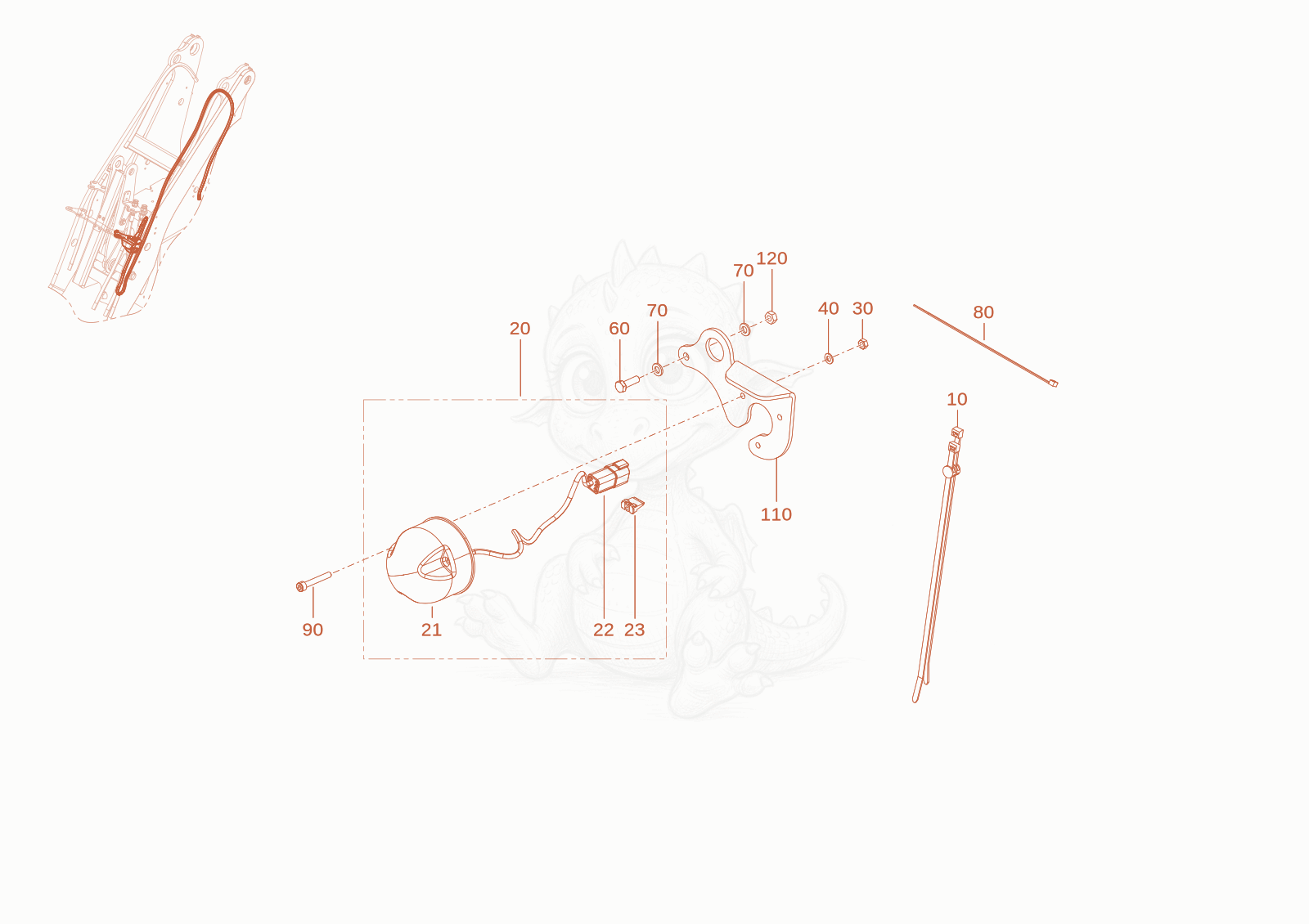

Exploded parts diagram of the socket of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000399434Not stocked
    mounting×8
  • 201000453620Not stocked
    wiring harness×1
  • 211000105125
    $90.64
    Socket - 1000105125×1
  • 221000085023
    $9.14
    Pin housing - 1000085023×1
  • 231000229835
    $10.56
    Connector-Locking - 1000229835×1
  • 301000049083
    $0.97
    NUT-HEX - 1000049083×3
  • 401000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×3
  • 601000018400Not stocked
    hex screw×1
  • 701000015430Not stocked
    u-washer×2
  • 801000193825
    $1.12
    cable strap - 1000193825×1
  • 901000082294
    $0.73
    cheese head screw - 1000082294×3
  • 1101000483144
    $119.82
    Bracket - 1000483144×1
  • 1201000015405Not stocked
    hexagon nut×1
