WL250

WL250(A02-01) brake pedal Diagram

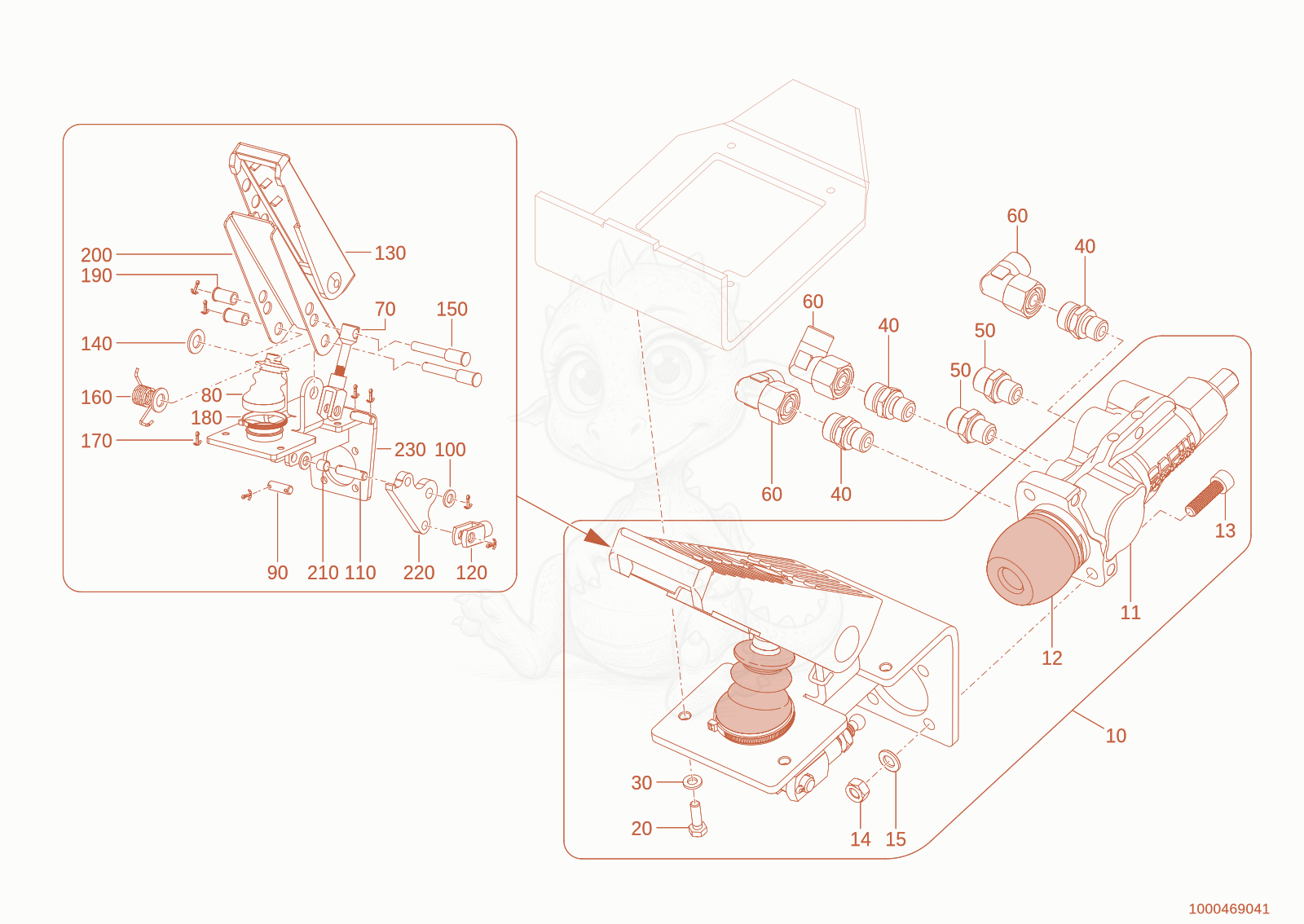

Exploded parts diagram of the brake pedal of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000464637Not stocked
    brake pedal×1
  • 111000436991
    $787.48
    Brakecylinder 1000436991×1
  • 121000334492Not stocked
    bellow×1
  • 131000013014Not stocked
    cheese head screw×2
  • 141000015406Not stocked
    hexagon nut×2
  • 151000015431Not stocked
    washer×2
  • 161000565147Not stocked
    pressure rod×1
  • 171000222530
    $1.45
    hexagon nut - 1000222530×1
  • 181000565158Not stocked
    lock ring×1
  • 201000018400Not stocked
    hex screw×4
  • 301000015430Not stocked
    u-washer×4
  • 401000085078
    $5.77
    GE12LM14X1,5EDOMDA3C - 1000085078×3
  • 501000085114
    $3.58
    GE10LMEDOMDA3C - 1000085114×2
  • 601000000573Not stocked
    screw joint×3
  • 701000501950
    $15.06
    Bolt - 1000501950×1
  • 801000501953
    $24.68
    Bellow - 1000501953×1
  • 901000502940
    $6.86
    Bolt - 1000502940×2
  • 1001000502941
    $0.26
    WASHER - 1000502941×2
  • 1101000502942
    $7.67
    Bolt - 1000502942×1
  • 1201000502943Not stocked
    fork head×2
  • 1301000501955Not stocked
    pedal rubber×1
  • 1401000502944
    $0.54
    WASHER - 1000502944×2
  • 1501000501956
    $13.07
    pin - 1000501956×2
  • 1601000502945Not stocked
    spring×1
  • 1701000501958
    $0.26
    COTTERPIN - 1000501958×8
  • 1801000118699
    $0.57
    cable strap - 1000118699×1
  • 1901000501960
    $6.74
    Sleeve - 1000501960×2
  • 2001000501965
    $32.19
    Pedal - 1000501965×1
  • 2101000502946
    $1.61
    bushing - 1000502946×1
  • 2201000502947
    $100.68
    LEVER - 1000502947×1
  • 2301000502948Not stocked
    bracket×1
