WL250

WL250(A02-01) coupling Diagram

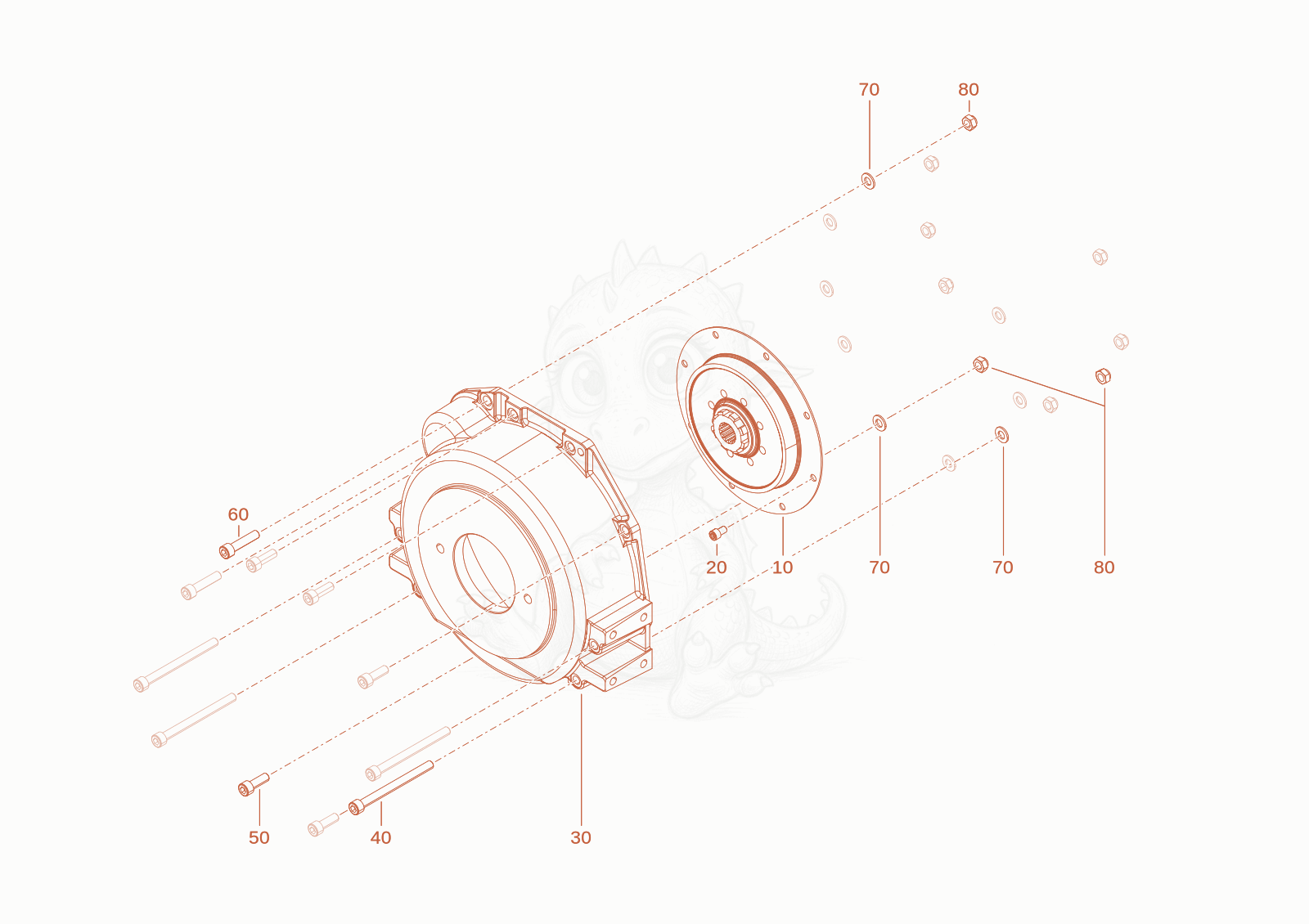

Exploded parts diagram of the coupling of a Wacker Neuson WL250(A02-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000461828
    $249.24
    coupling - 1000461828×1
  • 201000222476
    $1.91
    screw - 1000222476×8
  • 301000439890
    $327.62
    bulb - 1000439890×1
  • 401000085471
    $1.56
    cheese head screw - 1000085471×4
  • 501000015376Not stocked
    cheese head screw×5
  • 601000048287Not stocked
    cheese head screw×2
  • 701000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×9
  • 801000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×9
